Finishing large printed panels

Large printed panels mid-finish at Peak Technology, where I was a 3D printing technician.

Media
7 photos
Disciplines
3D Printing

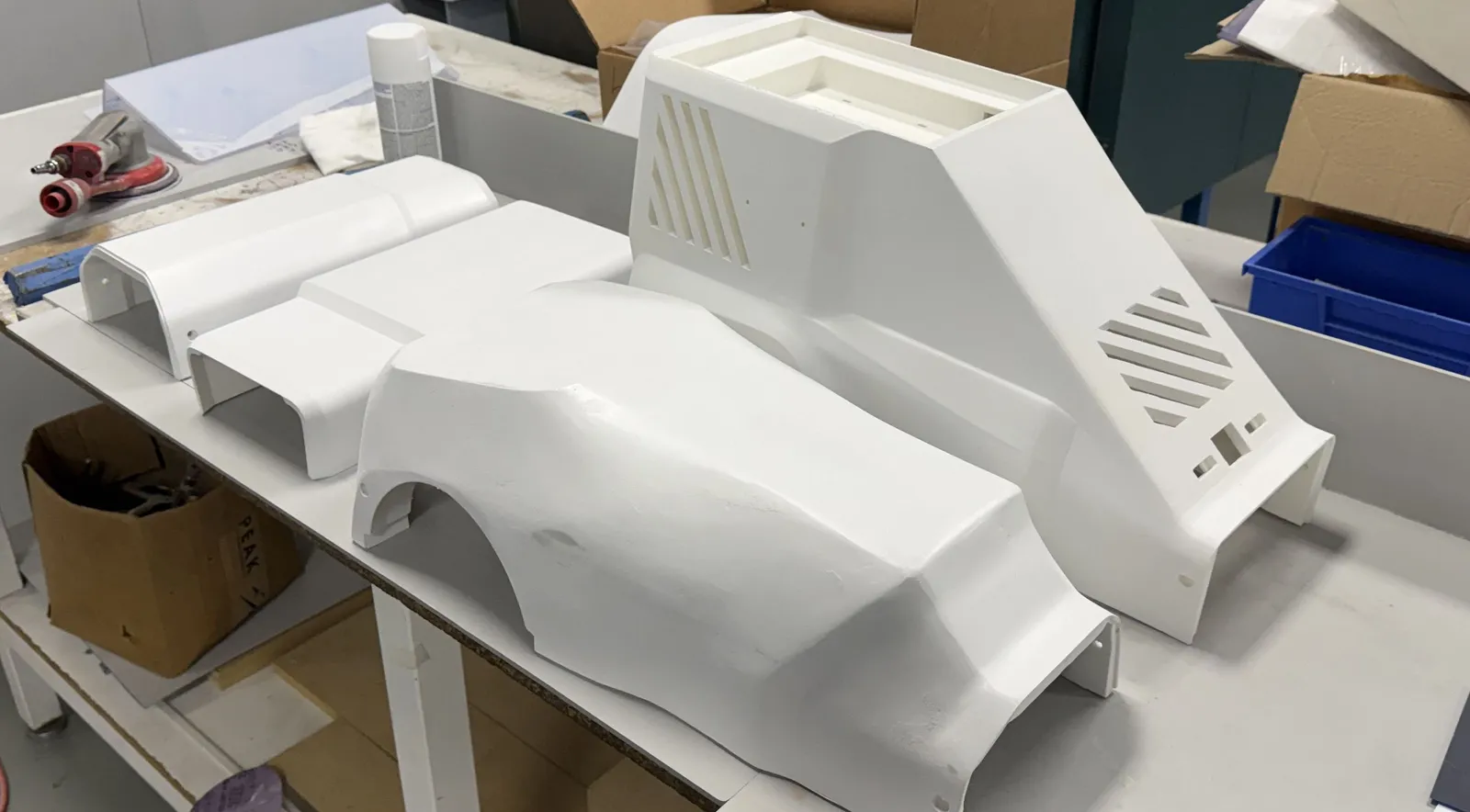

Fig. 01The set of panels on the finishing benchEnlarge

Notes

From June to September 2026 I ran and maintained the SLA, SLS and FDM print fleet in Peak Technology's additive manufacturing unit, and these large white panels are on a finishing bench there. The set is a body shell with a wheel arch, a vented housing, a housing with a round opening, and two cover panels.

The photos catch them part-way through finishing: filler spread over the shell and the lower part of the vented housing, with a random-orbit sander and sanding discs on the bench. On the housing with the round opening, the upper half has a matte white coat while the inside is still bare.

Photos

6 figures

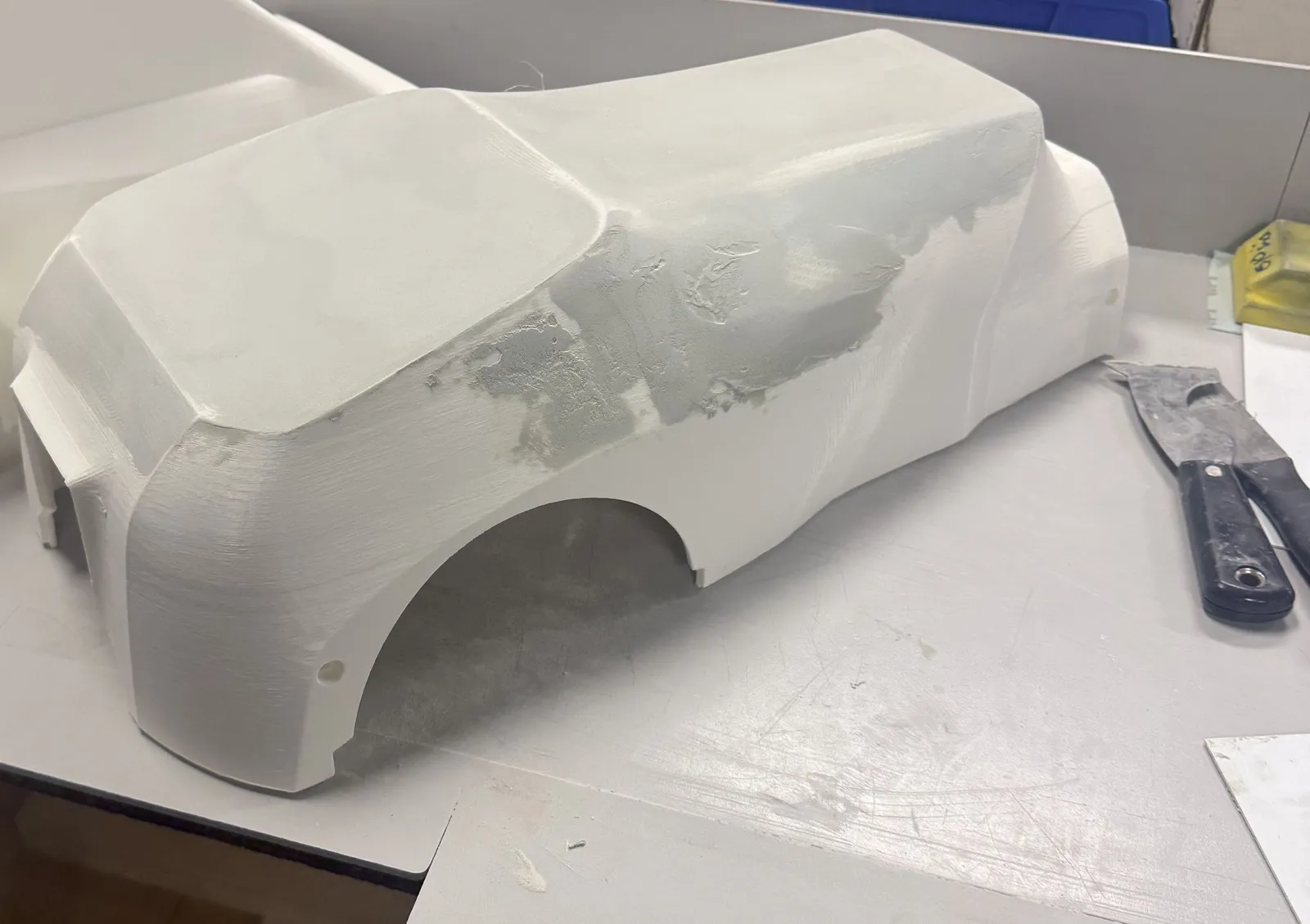

Fig. 02Filler spread over the shell

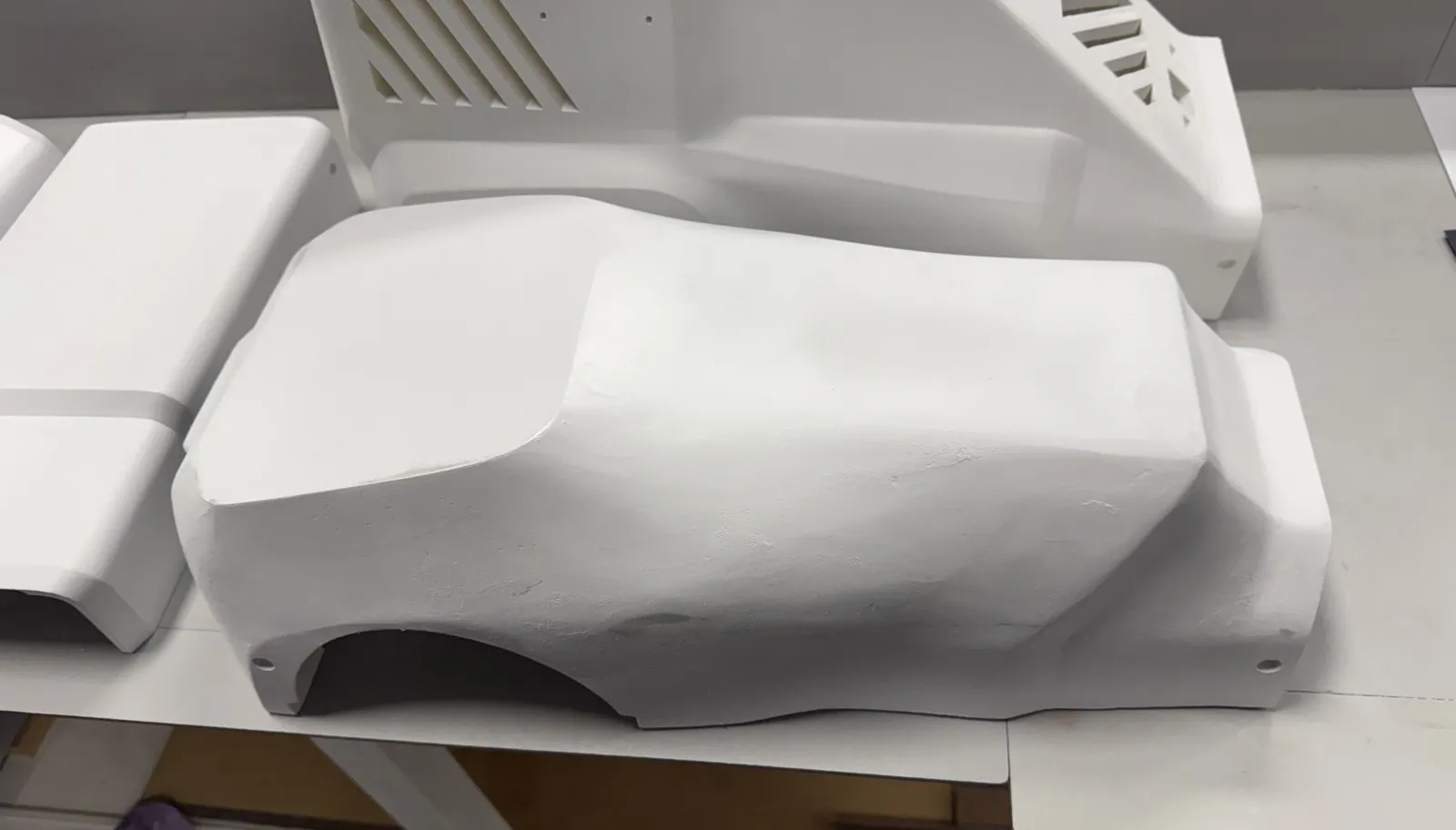

Fig. 03The same shell later, with the grey filler patches gone and the surface an even matte white

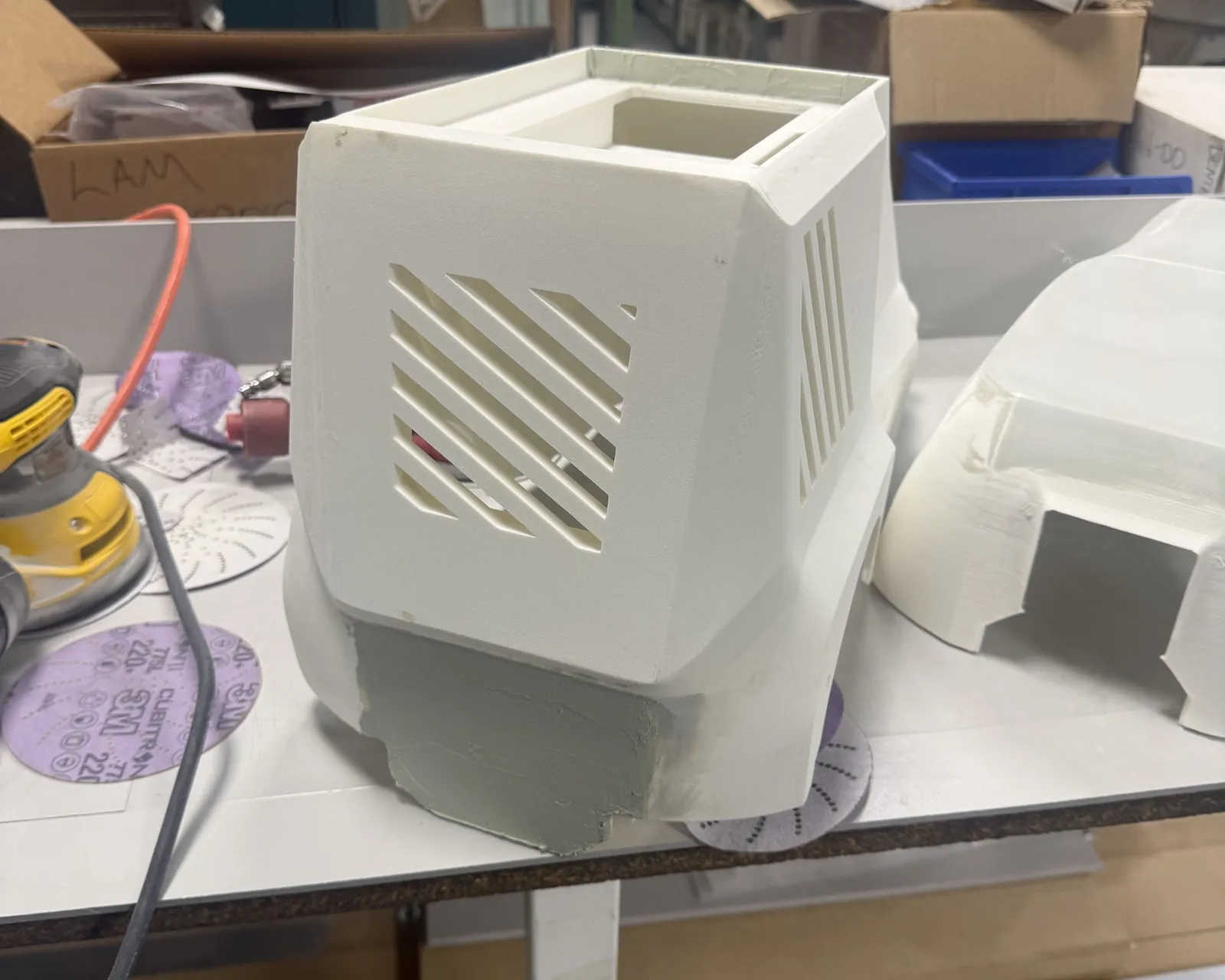

Fig. 04Filler on the lower part of the vented housing, with a random-orbit sander and sanding discs

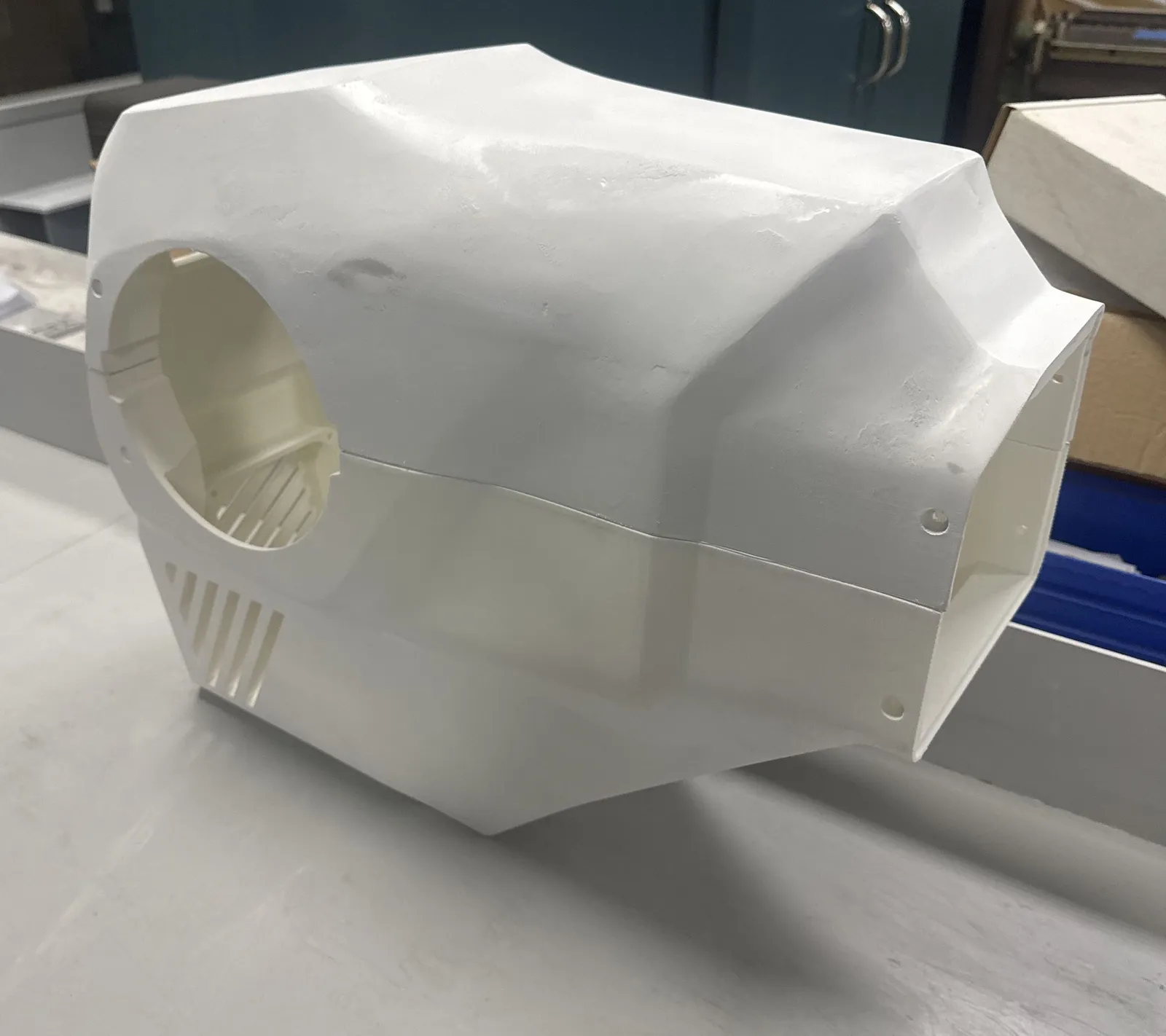

Fig. 05The housing with the round opening, part-way through finishing

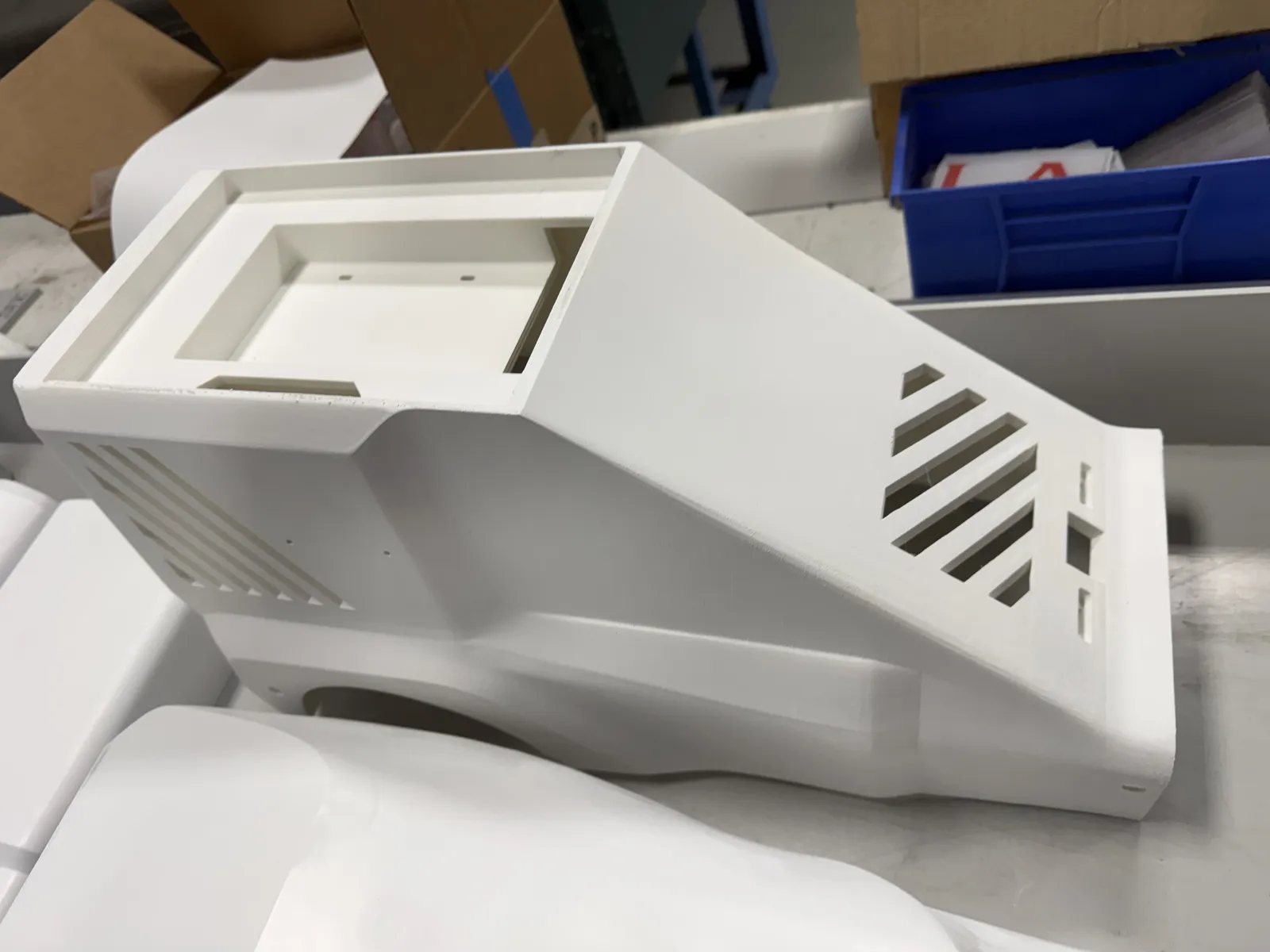

Fig. 06The vented housing

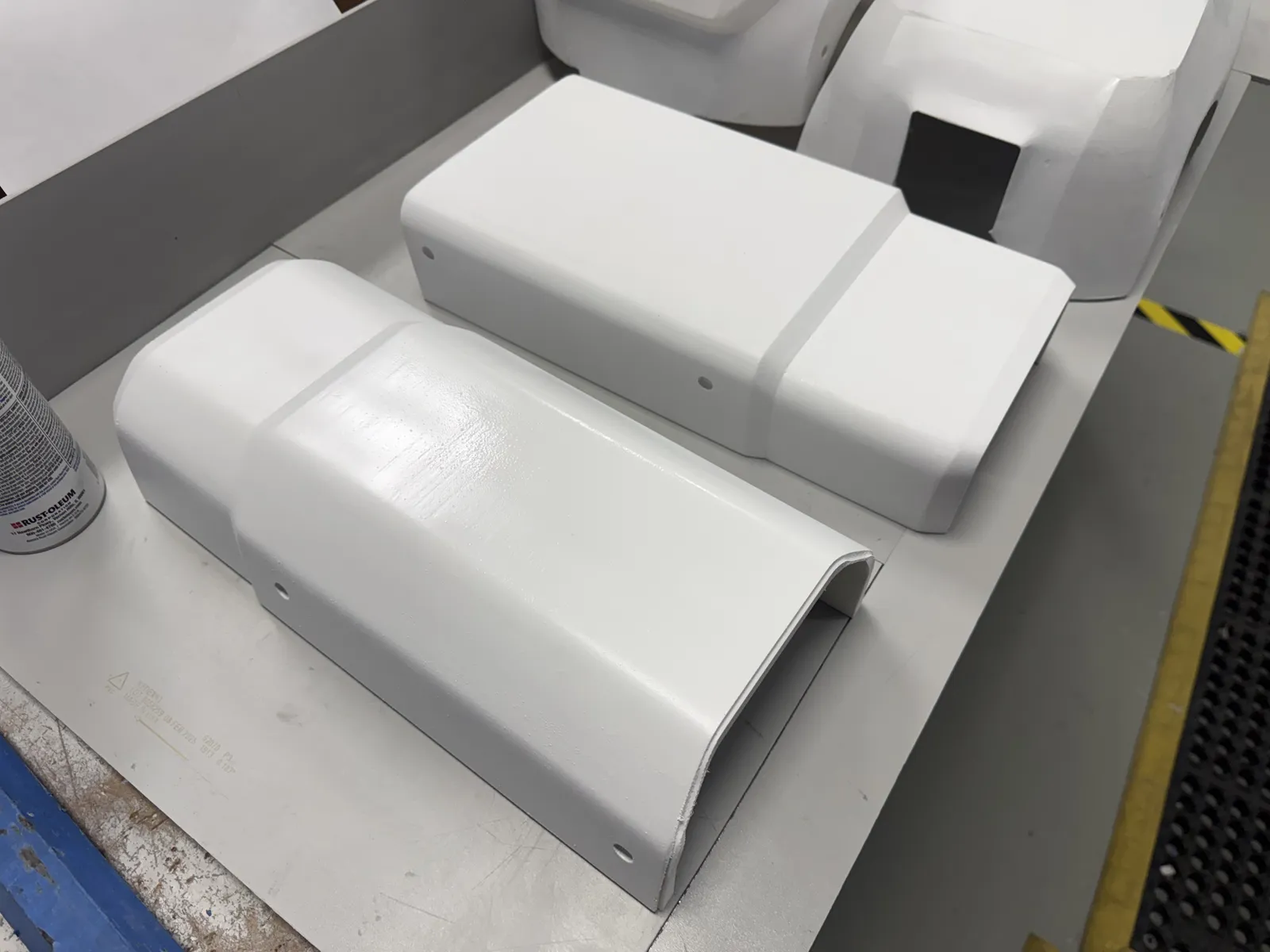

Fig. 07Two of the cover panels
