Frame lug prototypes

Printed lug, junction and tube-section prototypes, mostly for my Dirt Jumper V1, Dirt Jumper V2 and GST-279 frames.

Media
8 photos
Disciplines
Bikes3D Printing

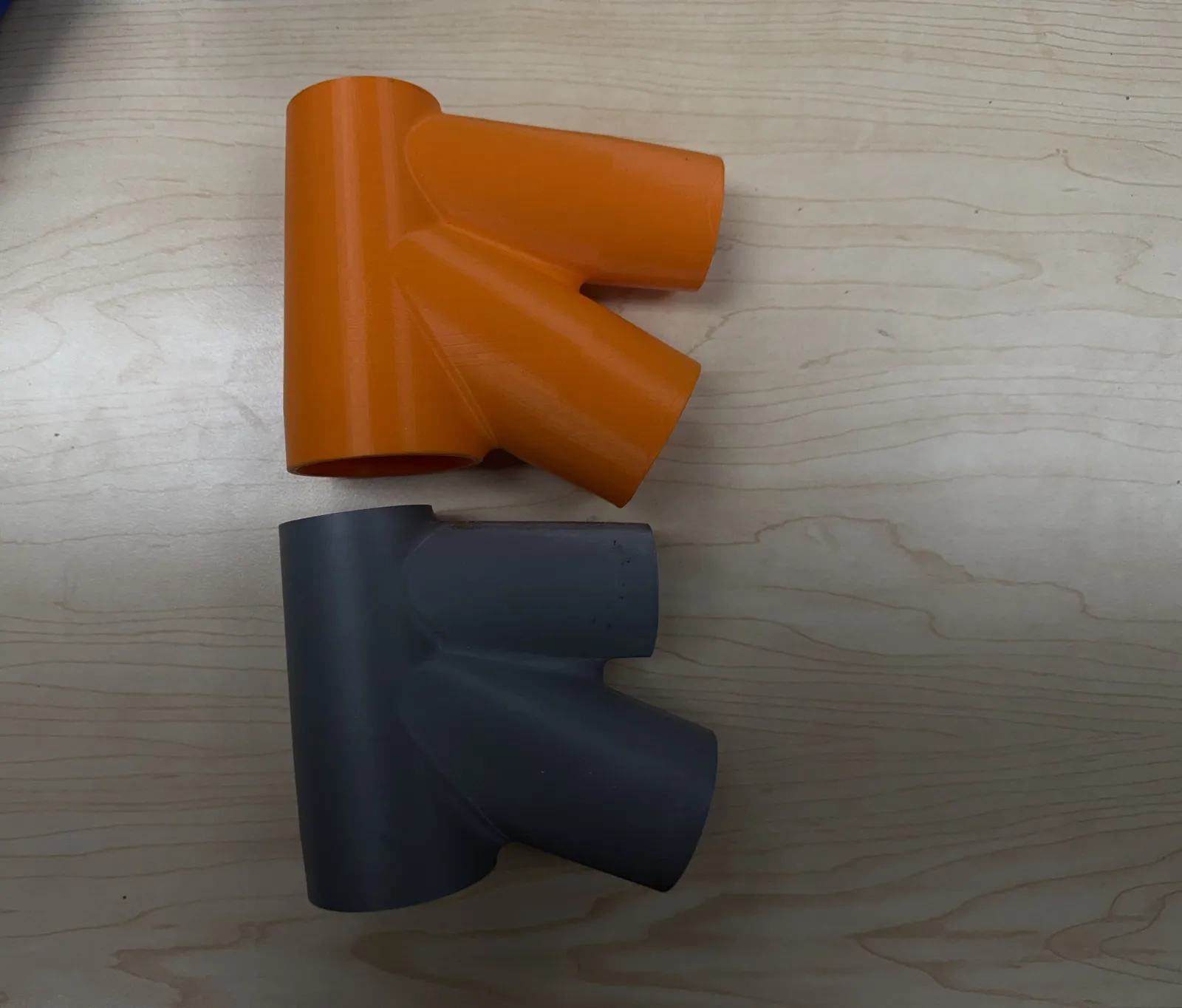

Fig. 01A head tube lug with two tube sockets, printed in orange and in dark greyEnlarge

Notes

Printed prototypes from my frame projects. Most of these are prototypes for Dirt Jumper V1, Dirt Jumper V2 (built with machined junctions and 3D printed in aluminum) and GST-279: mainly lugs, plus a few junctions and tube sections.

Some parts were printed more than once in different colours: a head tube lug in orange and dark grey, and one junction in white, blue and dark grey. The black sections fit together end to end into one long member, and the grey two-spigot lug takes short rings over its spigots.

Photos

7 figures

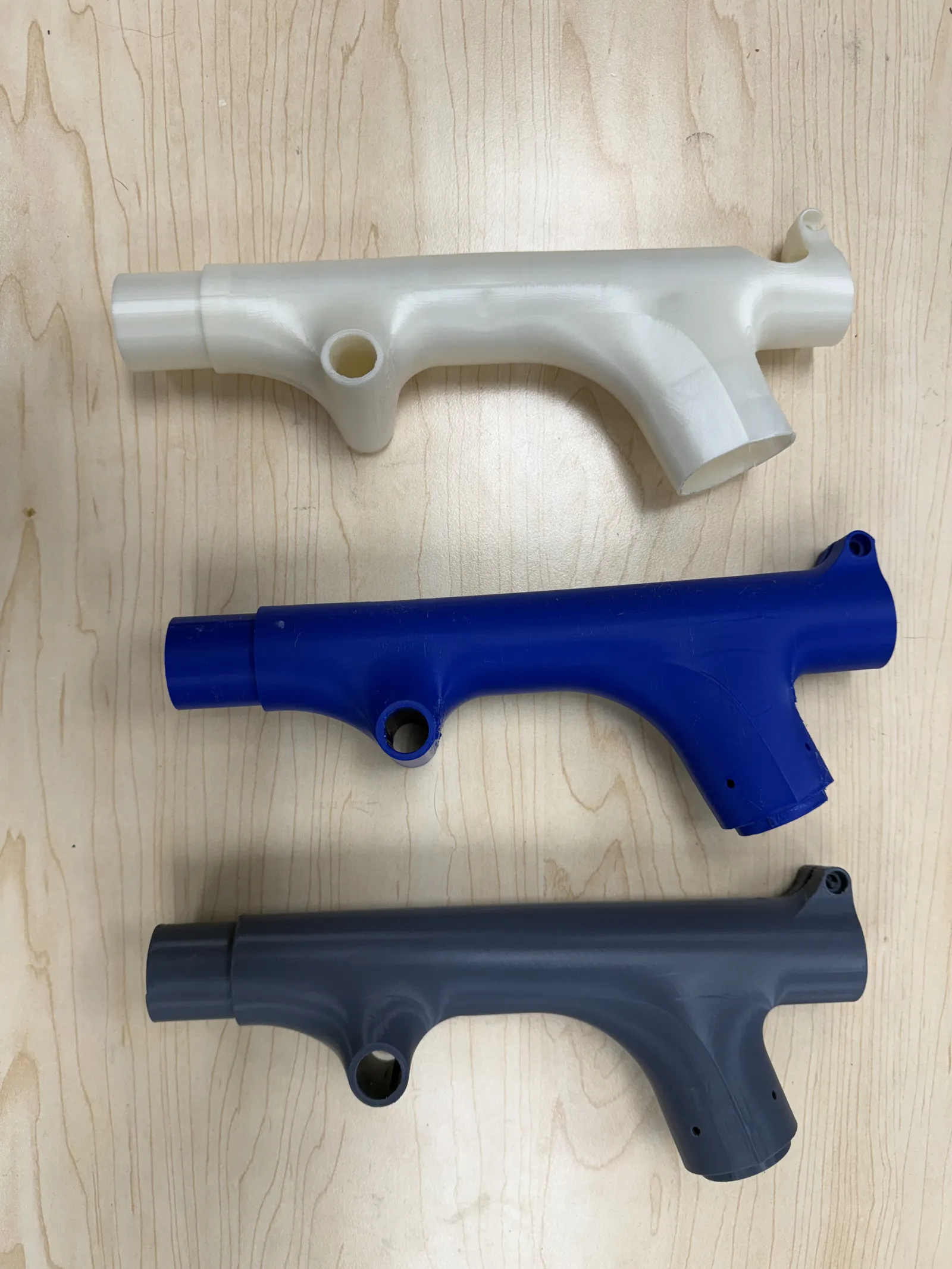

Fig. 02Three prints of one junction, in white, blue and dark grey: a stepped spigot at one end, a cross bore part way along and an angled branch at the other

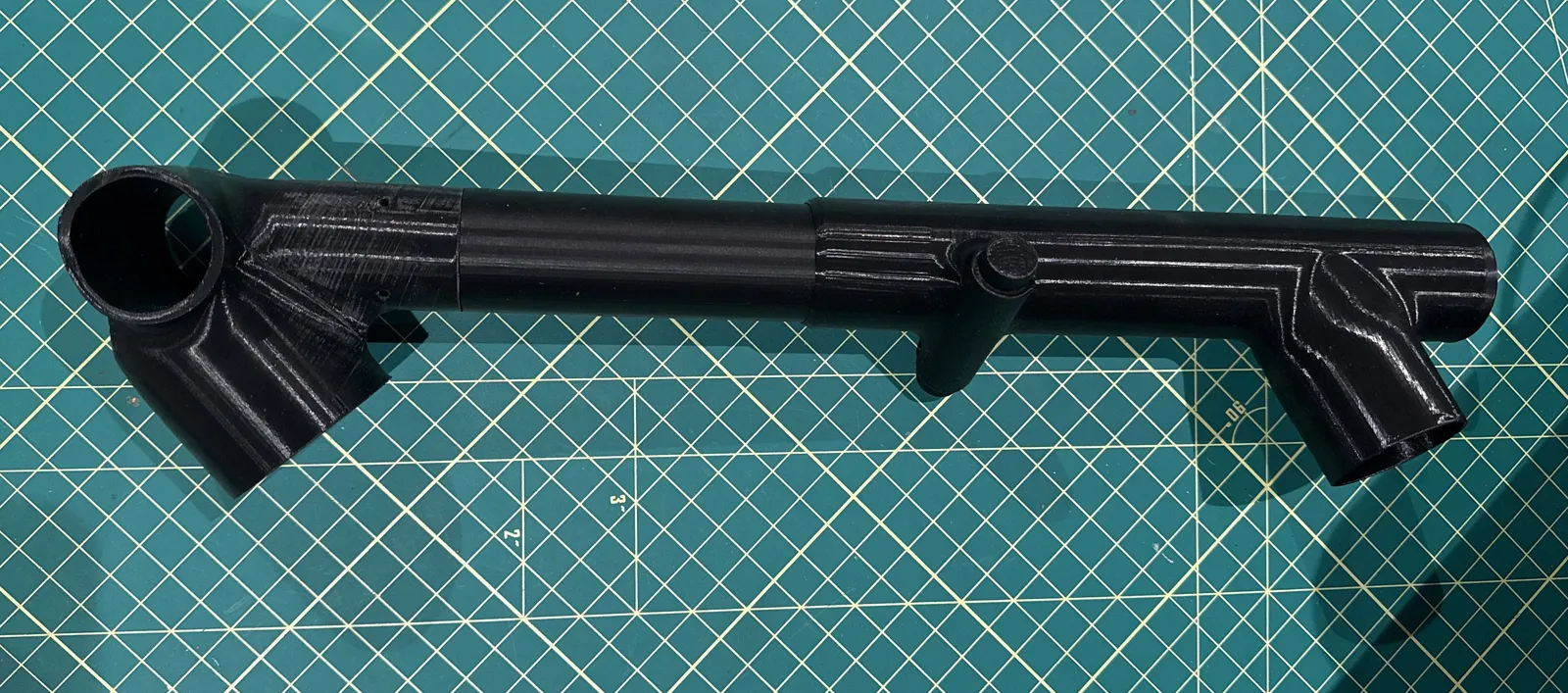

Fig. 03Three black printed sections fitted together end to end into one long member

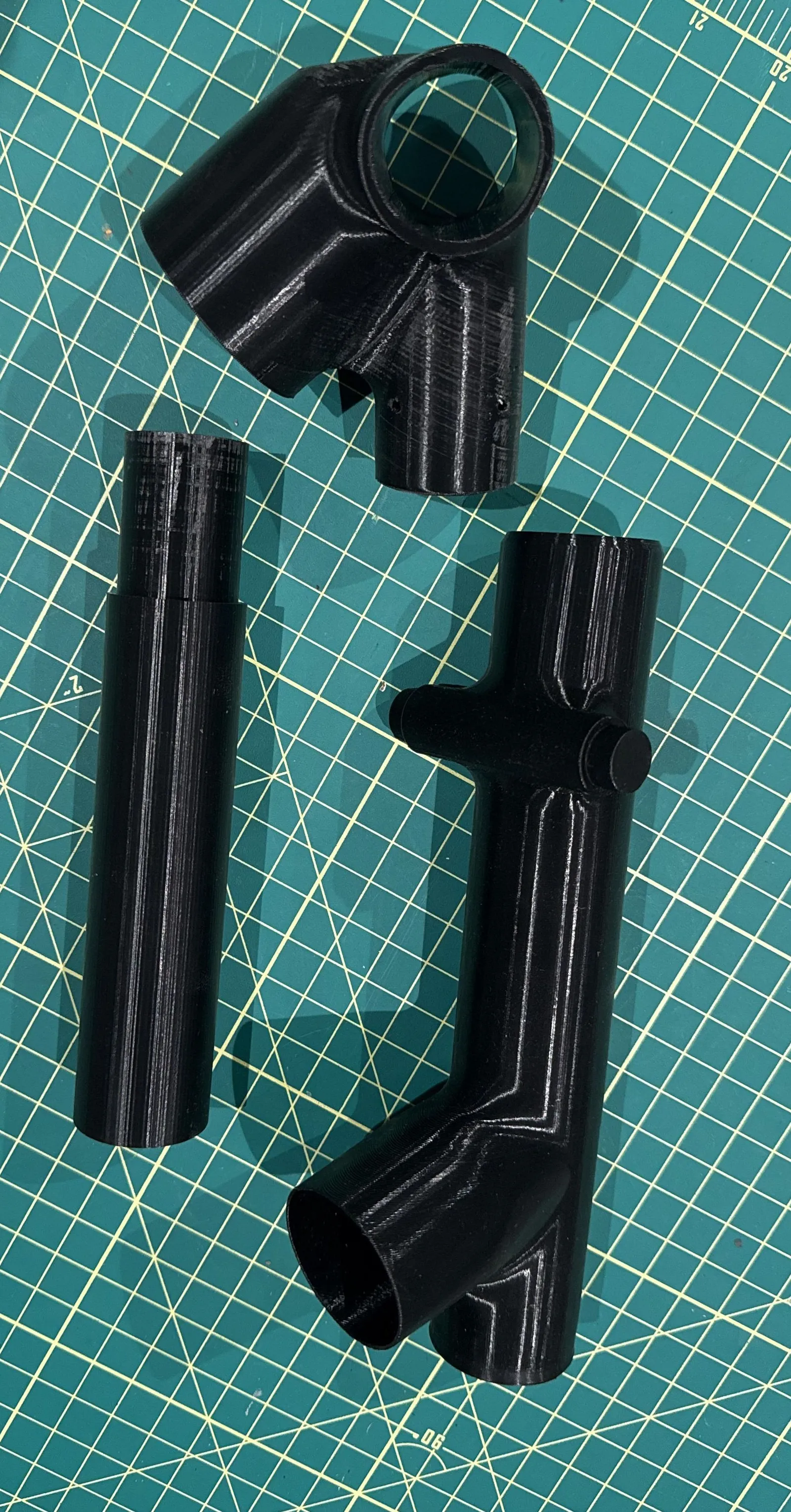

Fig. 04The same three black sections apart: a junction with a round socket, a plain tube section and a branched piece with a cross boss

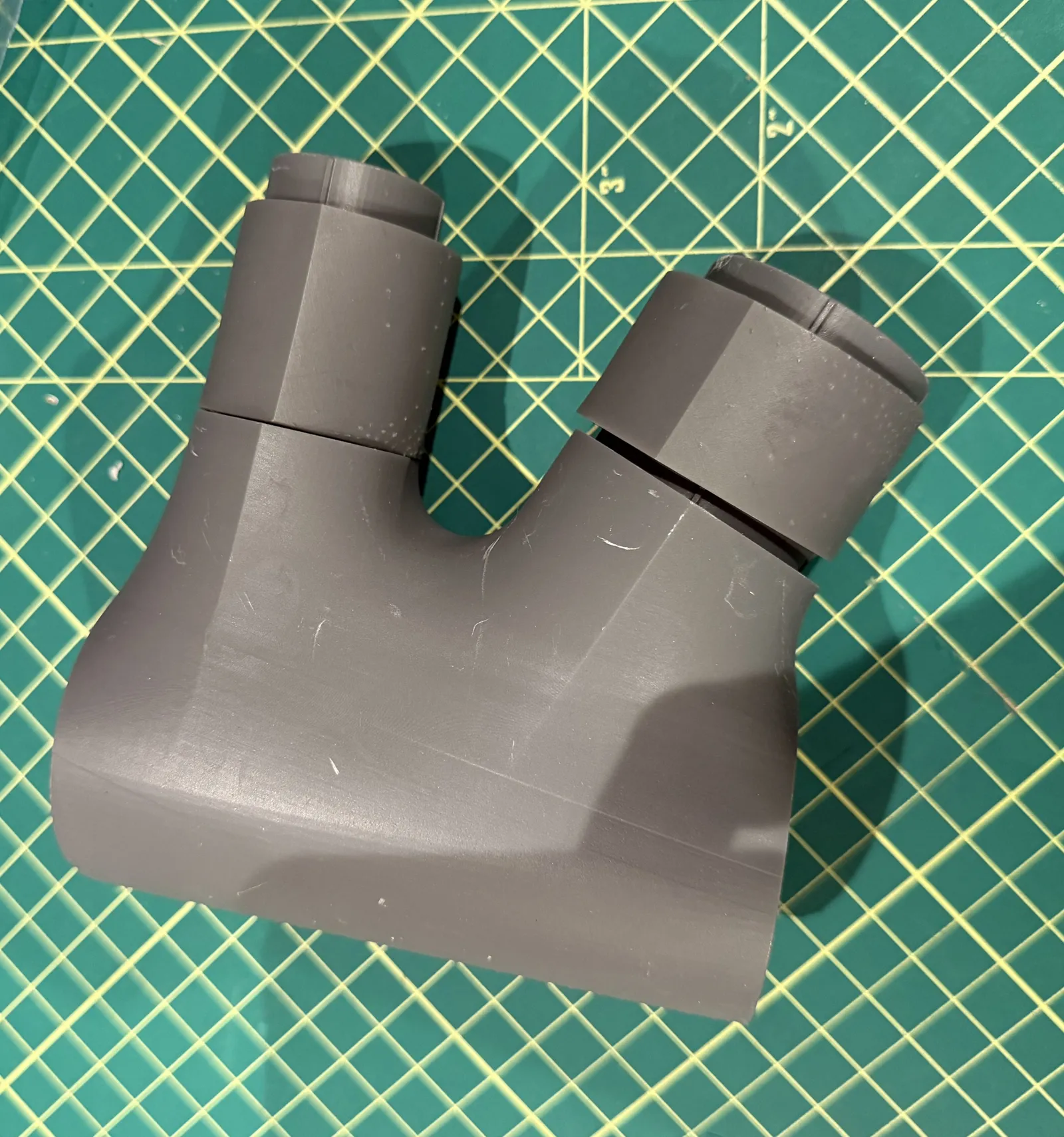

Fig. 05A grey two-spigot lug with short rings fitted over both spigots

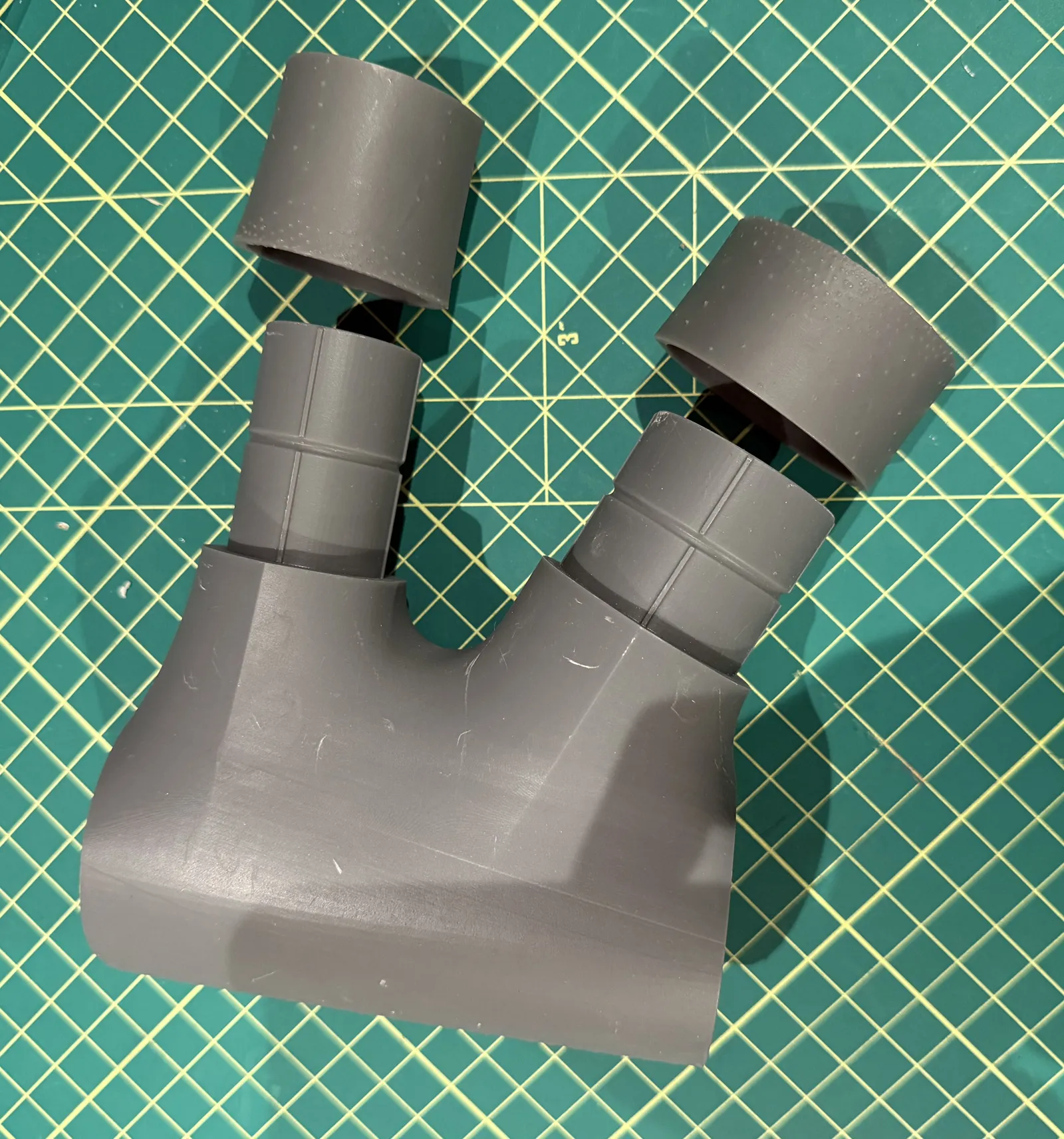

Fig. 06The same lug with the rings pulled off, showing the grooved spigots

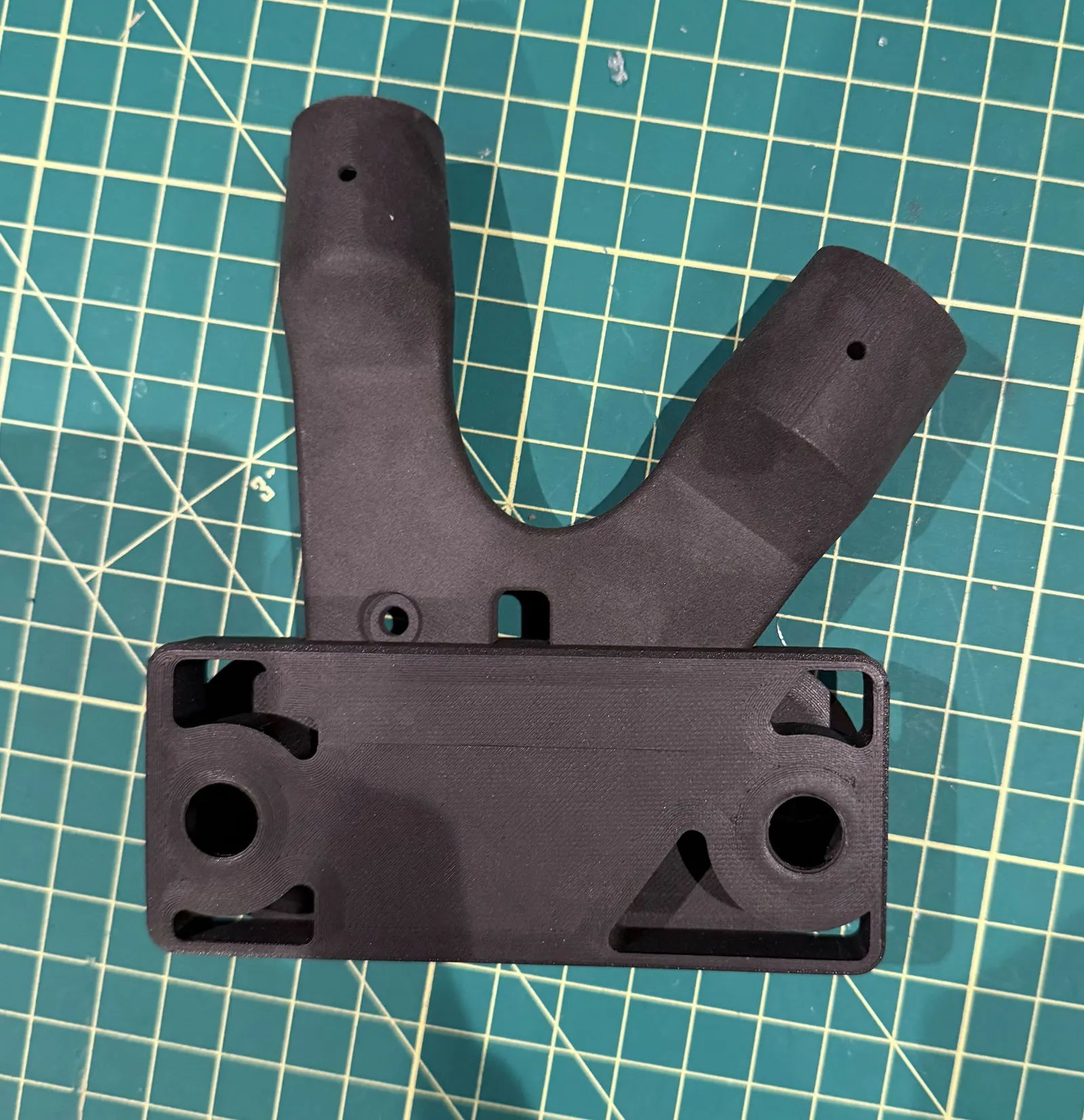

Fig. 07A dark printed Y-shaped lug with two tube sockets, set in a slotted plate

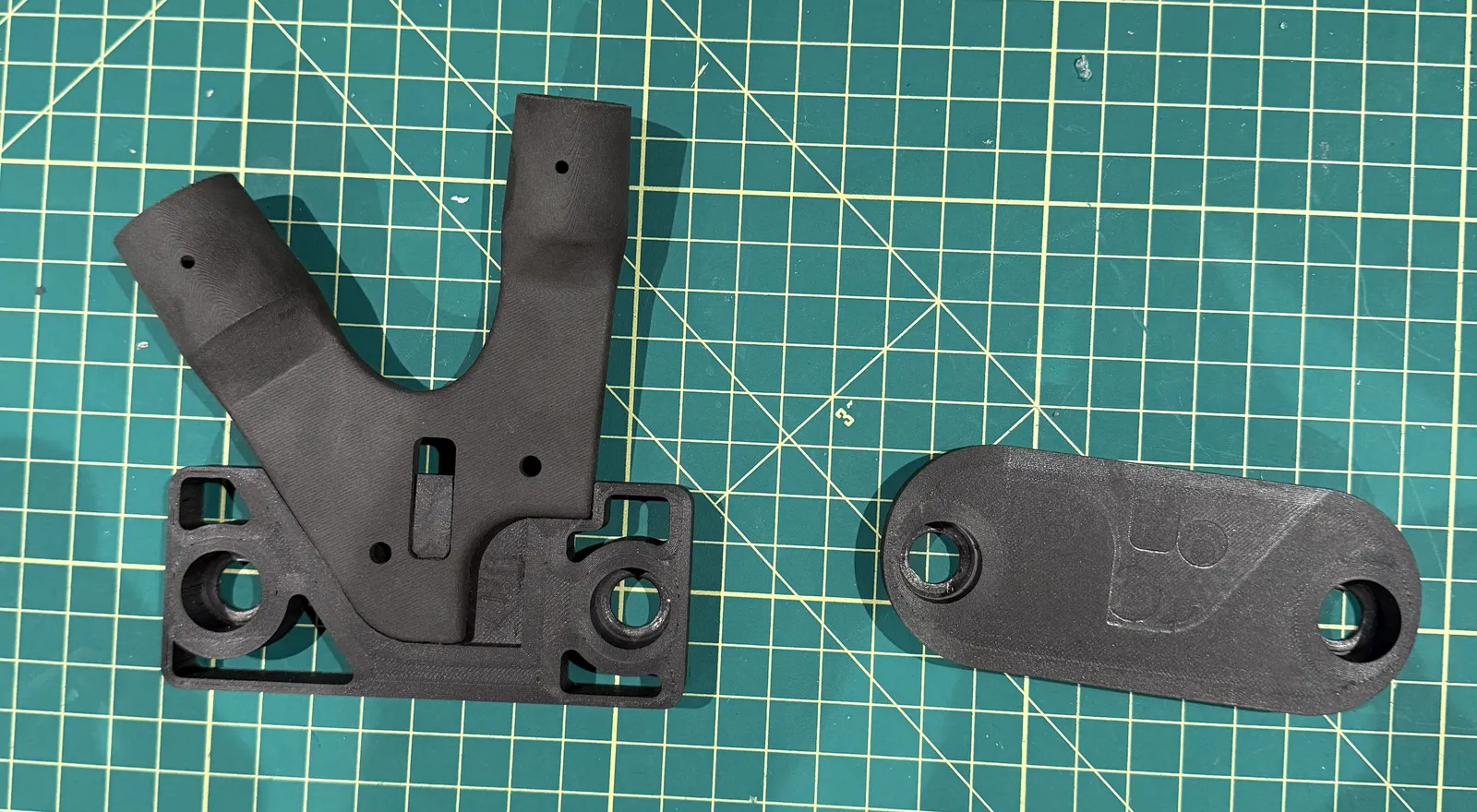

Fig. 08The Y-shaped lug in its slotted plate, beside an oval plate
