Printed terrain relief maps

Multi-colour terrain relief maps with the route raised in red, plus a La Quinta 70.3 plaque.

Date
Apr 2026
Media
7 photos
Disciplines
3D Printing

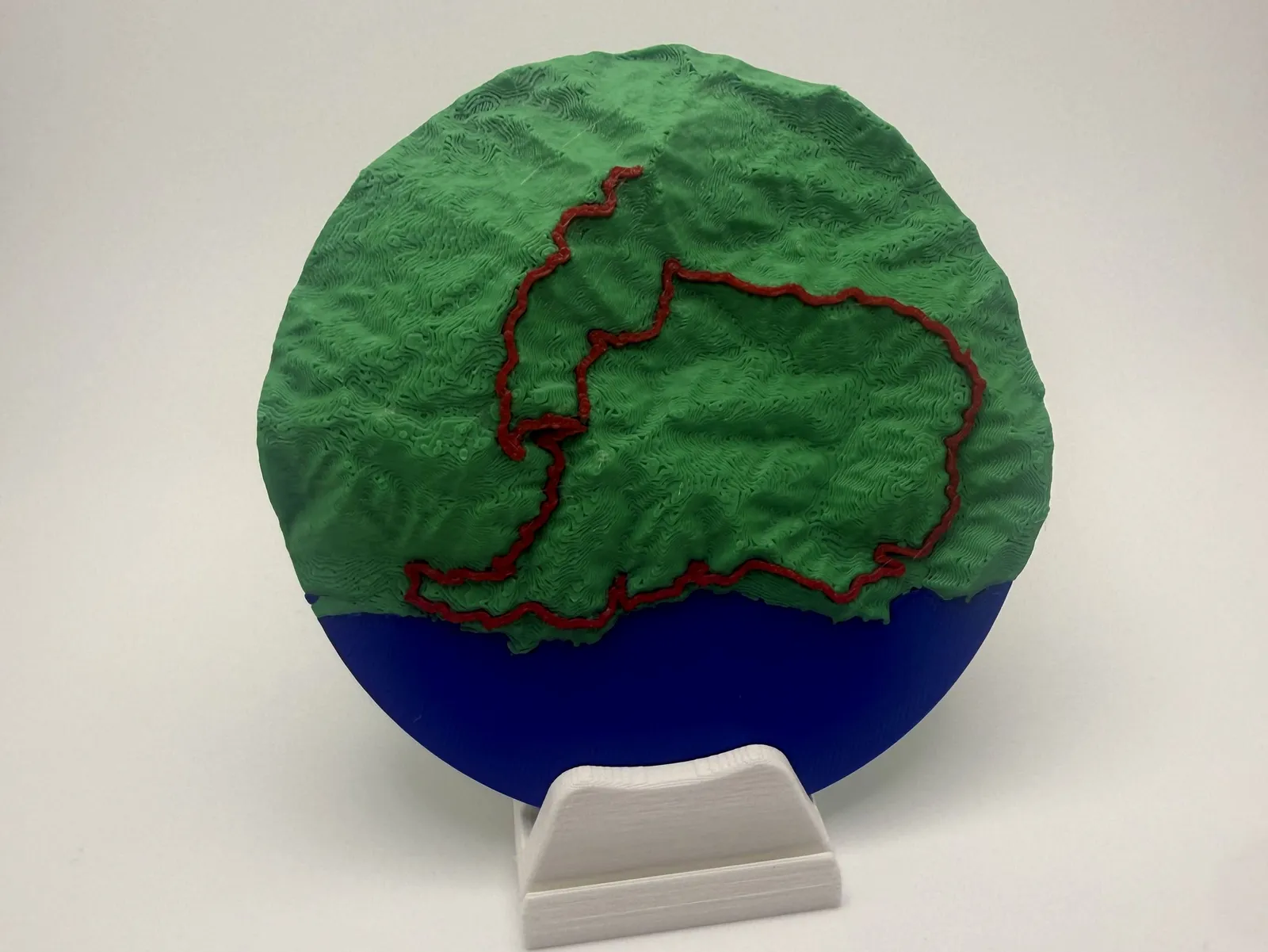

Fig. 01Relief map with a raised red route and blue water, on a printed standEnlarge

Notes

Round terrain relief maps printed in several colours: shaded terrain with the route raised in red and water picked out in blue. The series comes in green, dark green, grey and blue-grey, and one grey version shows contour lines instead of shading. The finished discs stand on small printed stands.

A plaque version has white lettering around the rim: "La Quinta 70.3 12/7/2025". One is a different format: a mountain bike ride mapped across two terrain sections, with "MTB RIDE" printed on the side.

Photos

6 figures

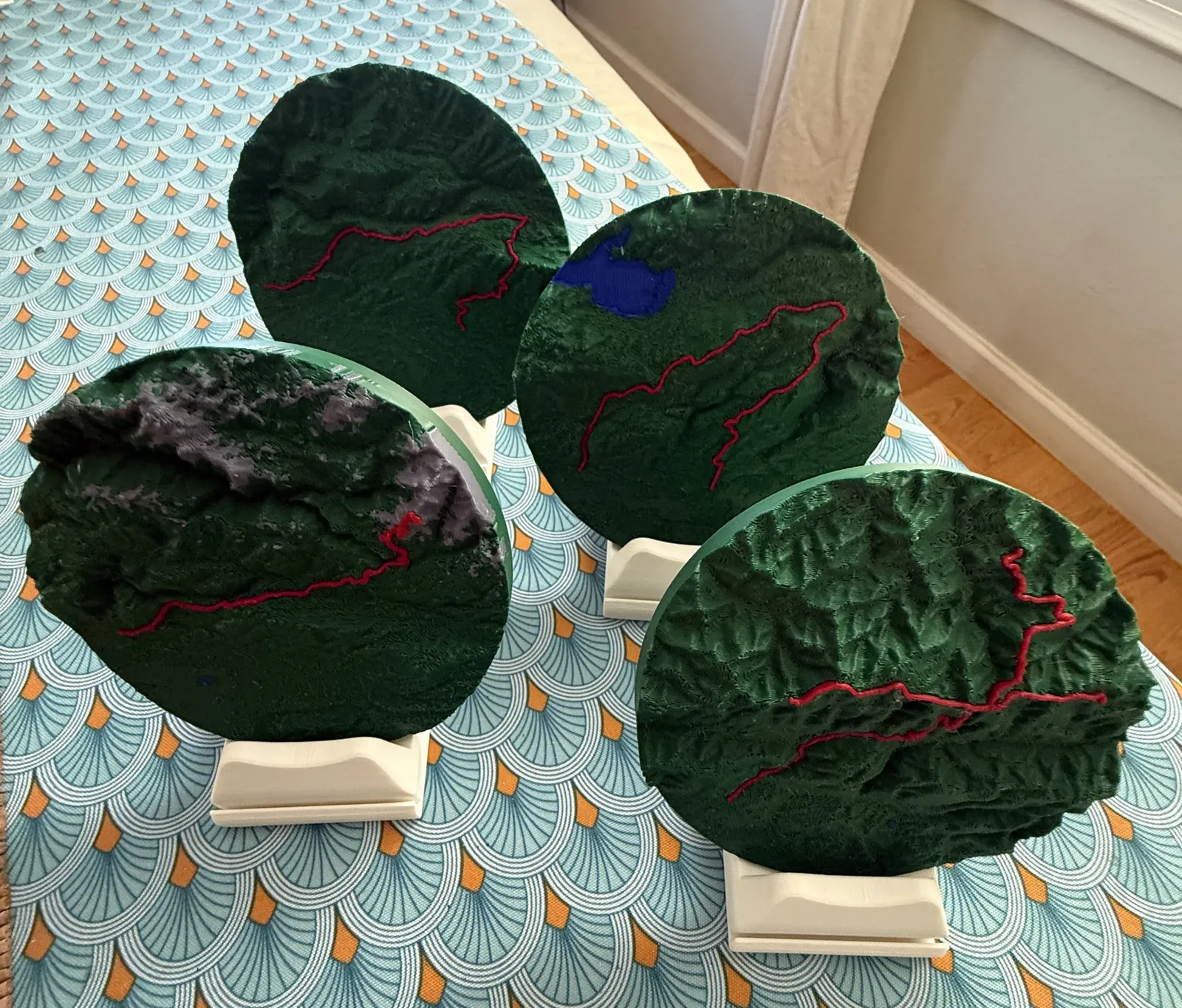

Fig. 02Four maps from the series on their printed stands

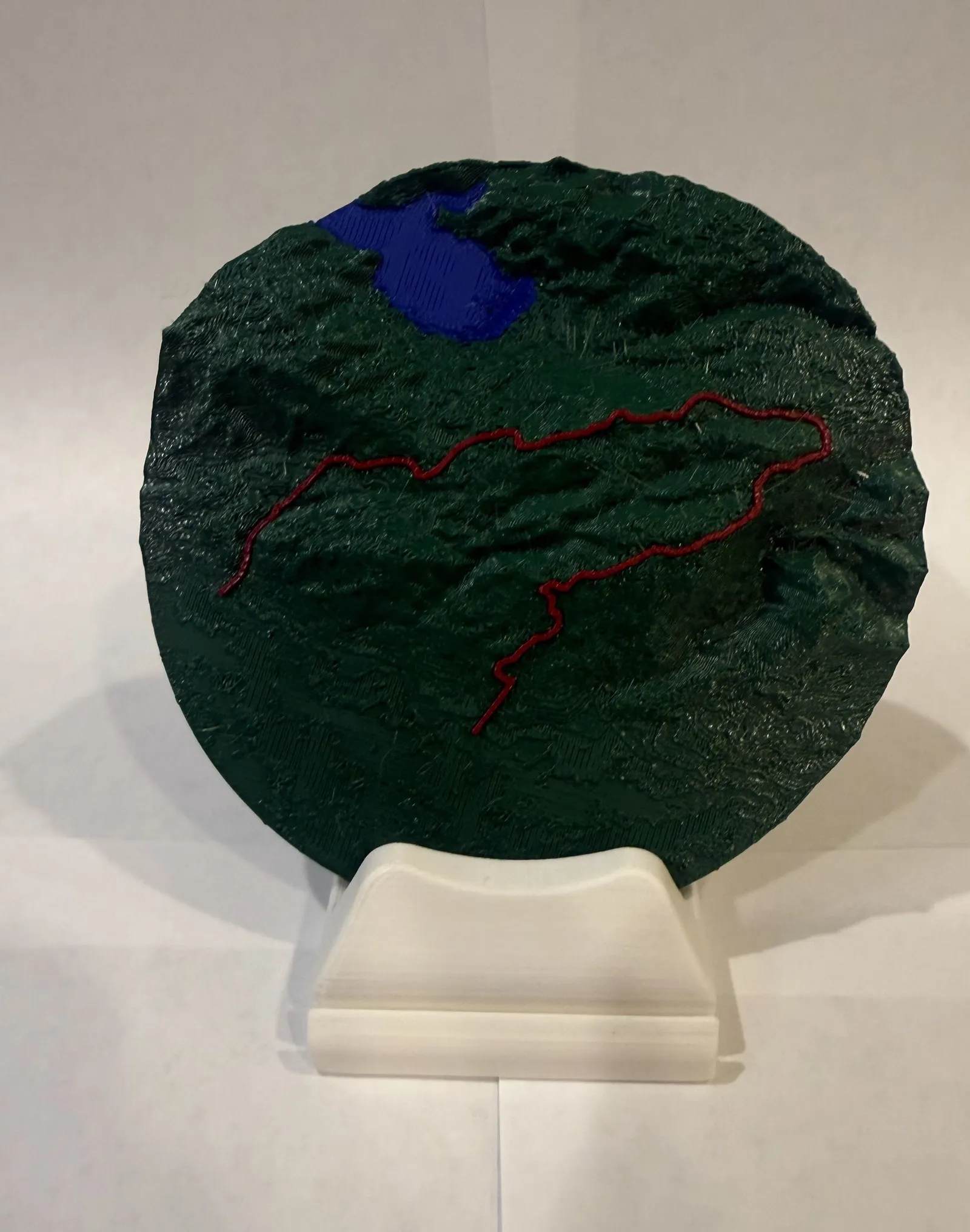

Fig. 03A dark green map with a lake picked out in blue

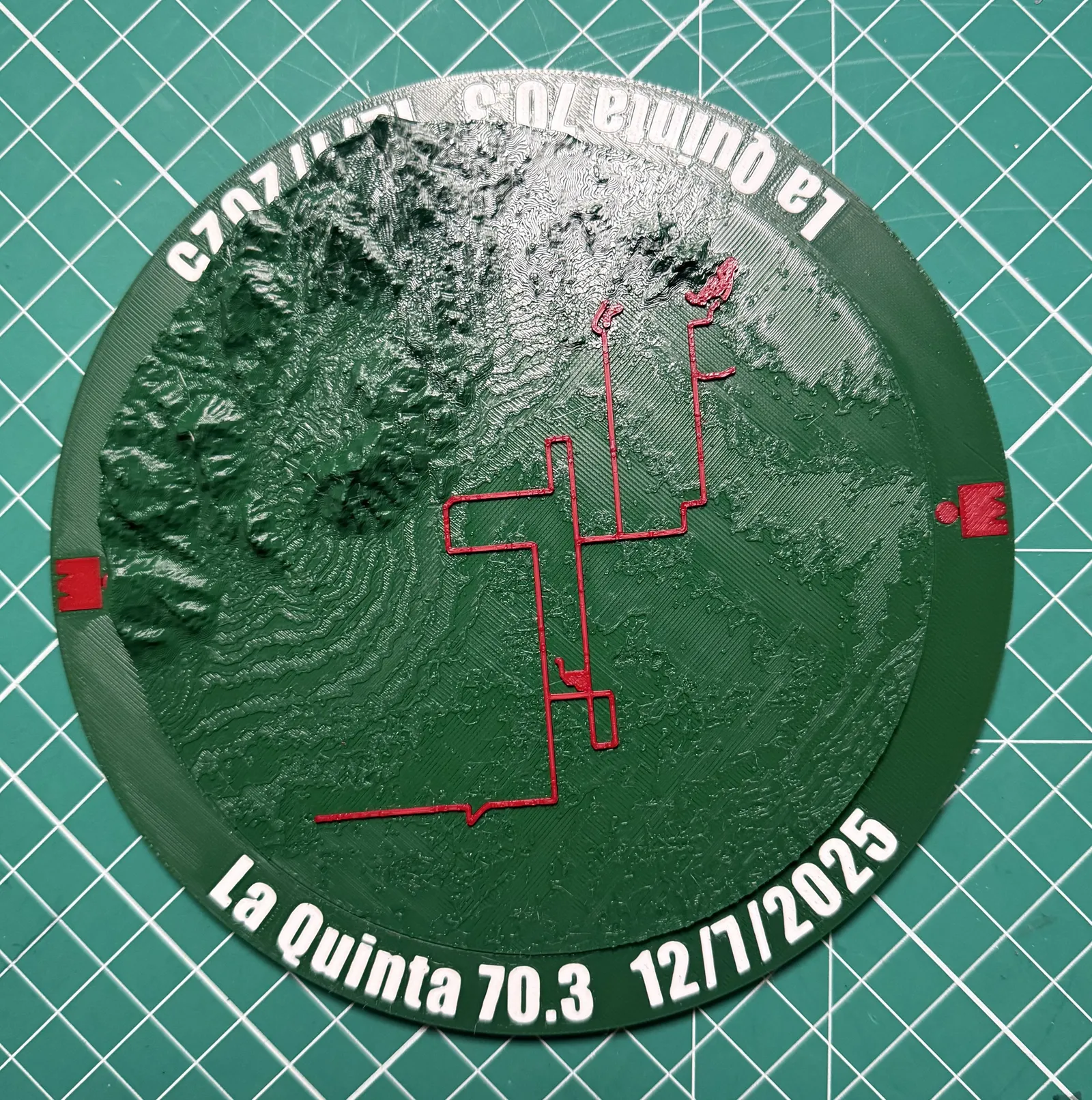

Fig. 04A plaque lettered "La Quinta 70.3 12/7/2025", with the route in red

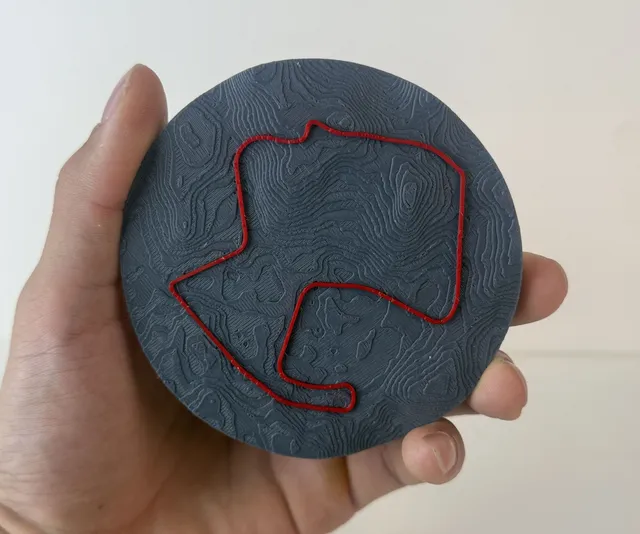

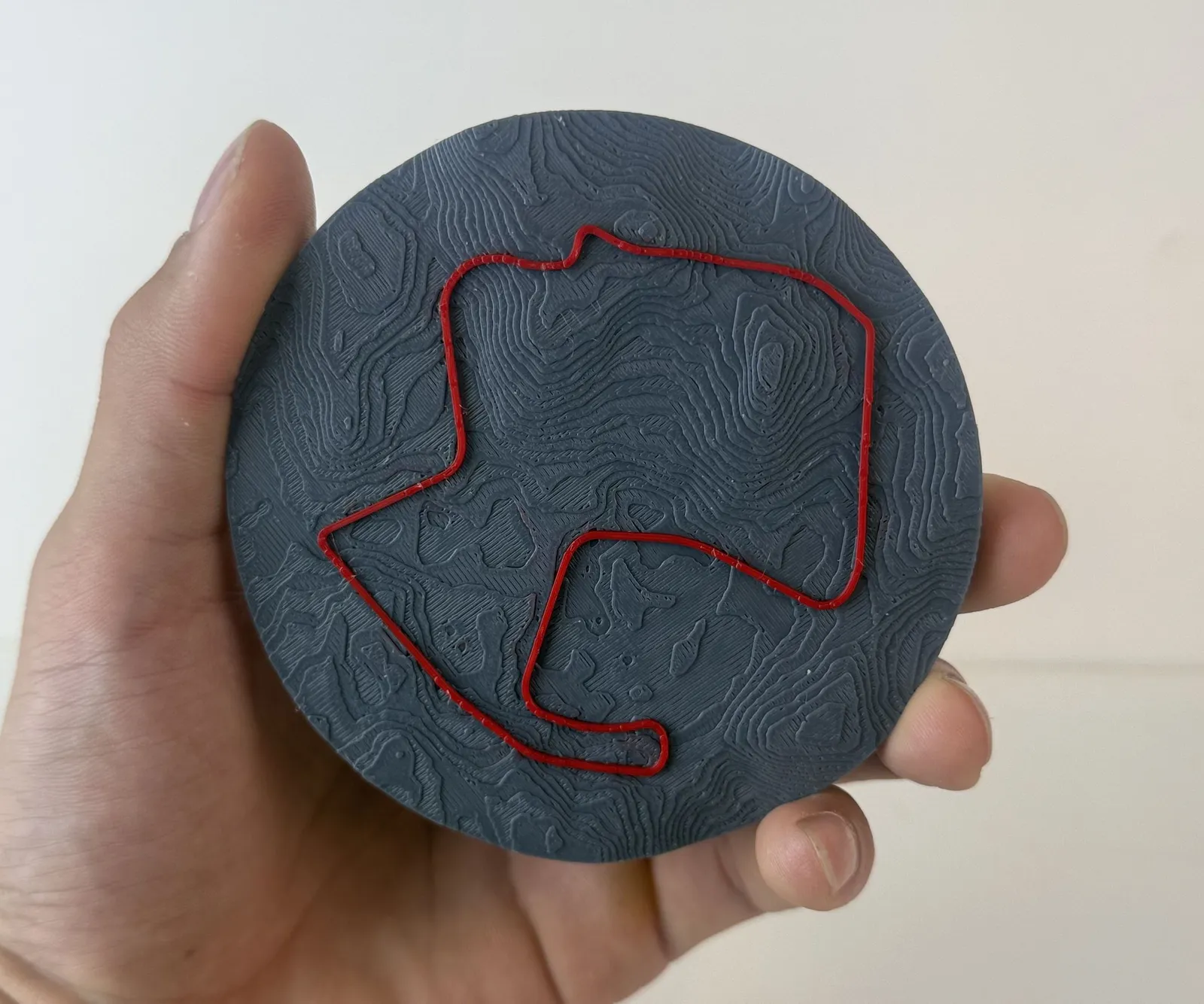

Fig. 05A grey version with contour lines and the route in red

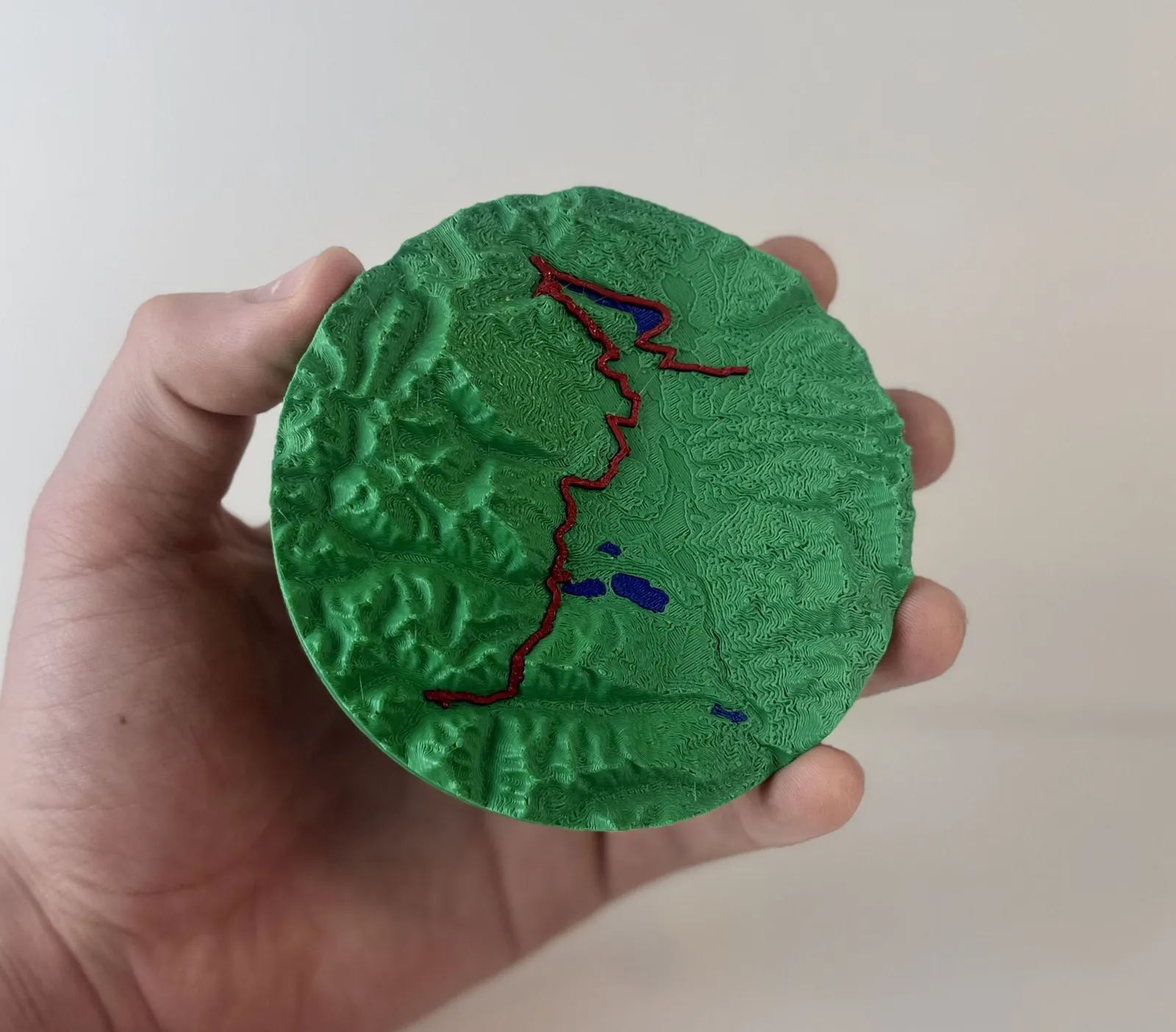

Fig. 06A green version with lakes in blue

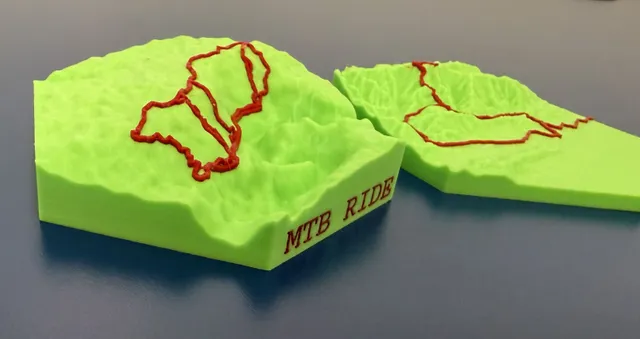

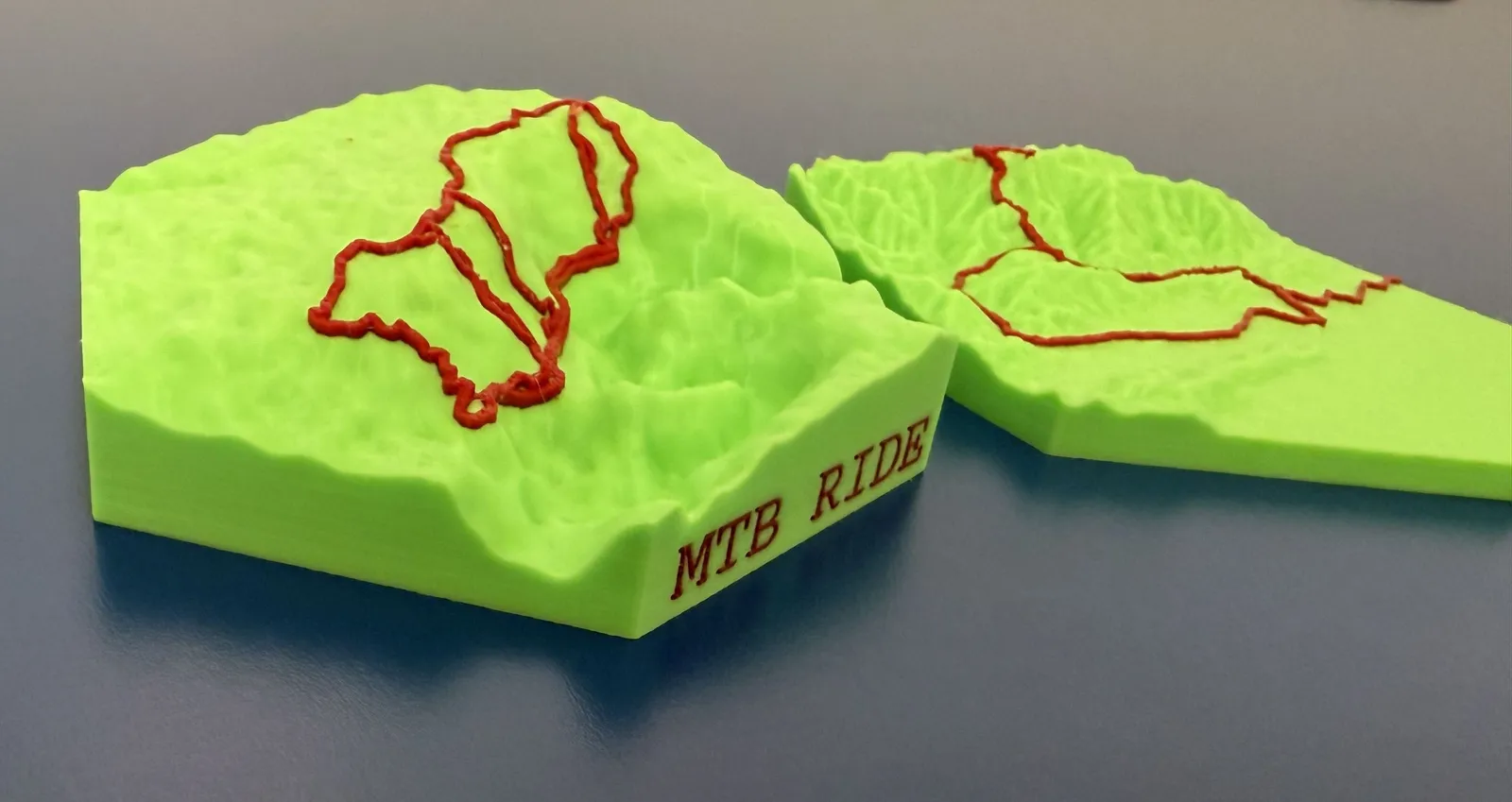

Fig. 07A ride mapped across two terrain sections, marked "MTB RIDE"
