Printed products: a camera mount, containers and cup holders

A sun-visor camera mount, knurled screw-top containers and hex-pattern cup holders that join up.

Date
Nov 2025
Media
13 photos
CAD
Fusion
Disciplines
3D PrintingCAD

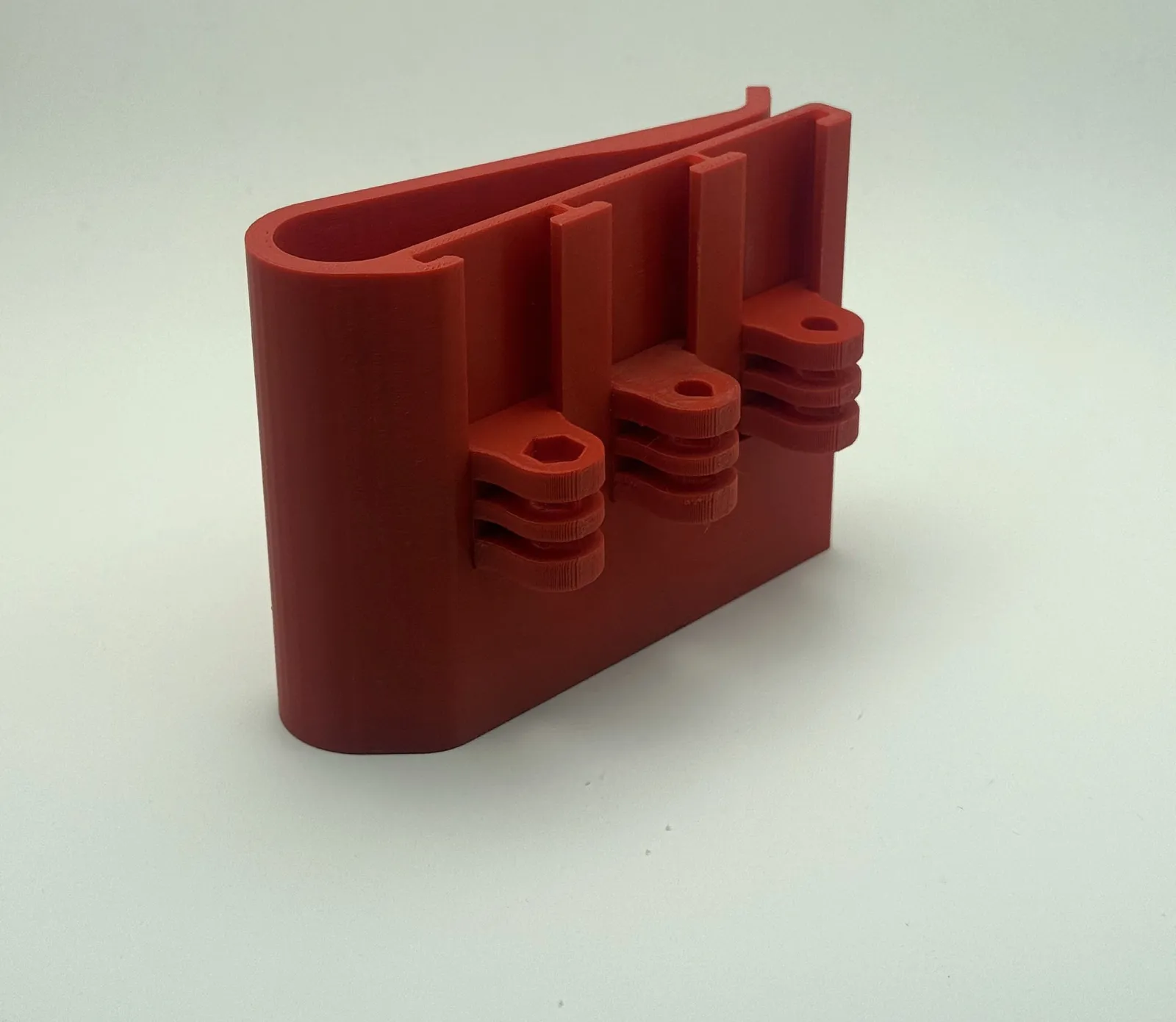

Fig. 01The visor clip with a mount block in each of its three slotsEnlarge

Notes

Three small products I printed that aren't bike parts: a camera mount that clips onto a car sun visor, screw-top containers with a diamond knurl, and cup holders with hexagon cut-outs that join into one unit.

The visor mount is a U-shaped clip with three slots on its face. Each slot takes a slide-in block with action-camera mounting fingers, so the clip can carry one to three mounts. I also modelled a hex-pattern version in Fusion with three fixed mounts, and a black hex-pattern clip holds an action camera on a car visor.

The containers have a diamond knurl all over, a threaded body and a deep cap with a triangular loop on top. I printed them in white, black and grey, and in two-colour versions such as white with a magenta top and base. A section view of one container design shows the threads and an insert in its base.

The cup holders are open-sided cups with a slot for a mug handle and hexagon cut-outs in the walls. A tall hex-cutout piece on a round foot fits into the base of a holder, and there is a rectangular holder in the same style. The modules interlock at their bases, and on the couch two cup holders and the rectangular holder sit joined in a row, holding two mugs and a remote.

Photos

12 figures

Fig. 02Side view of the U-shaped clip, with the mounting fingers on top

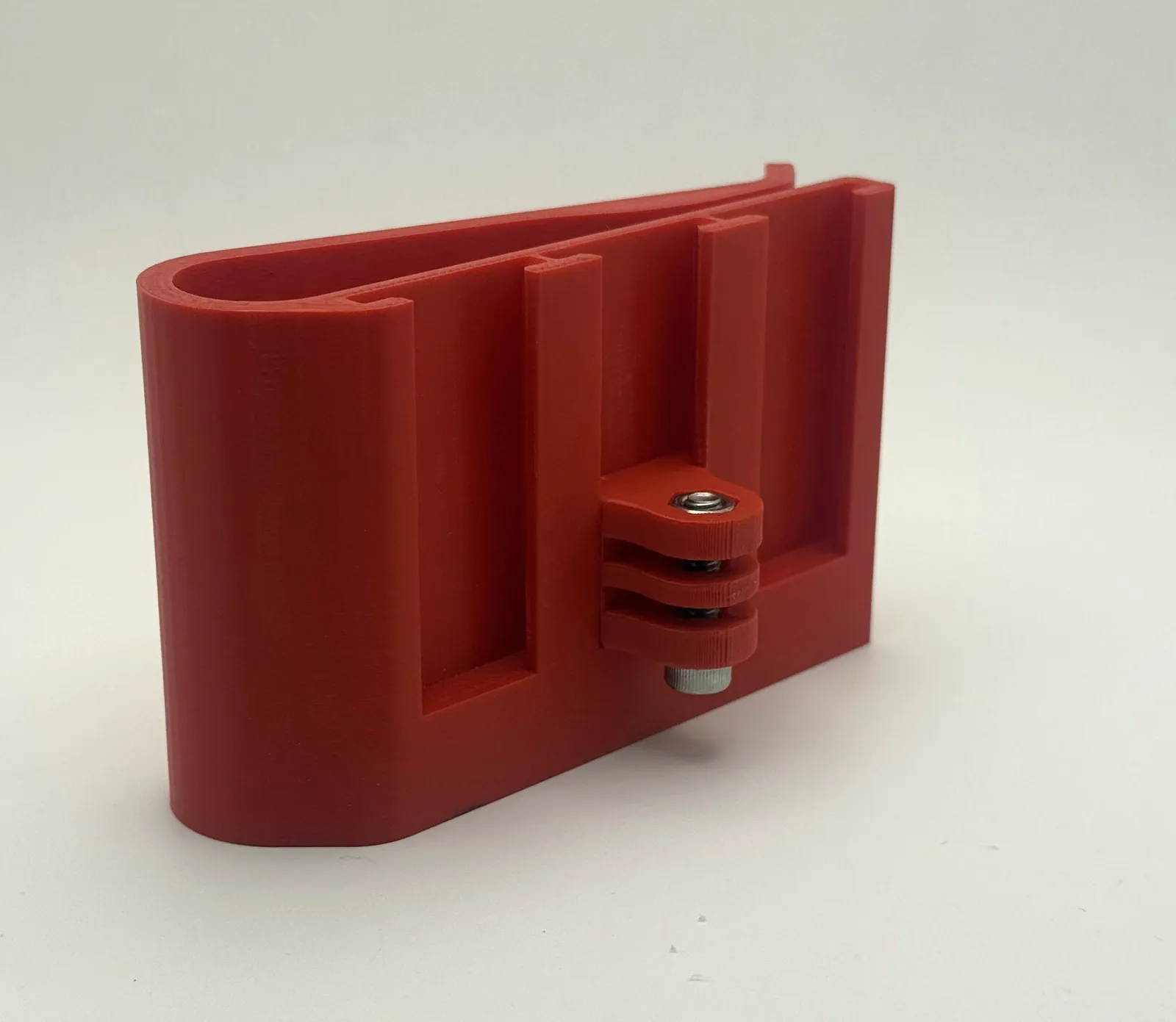

Fig. 03One mount block slid into a slot, the other two slots empty

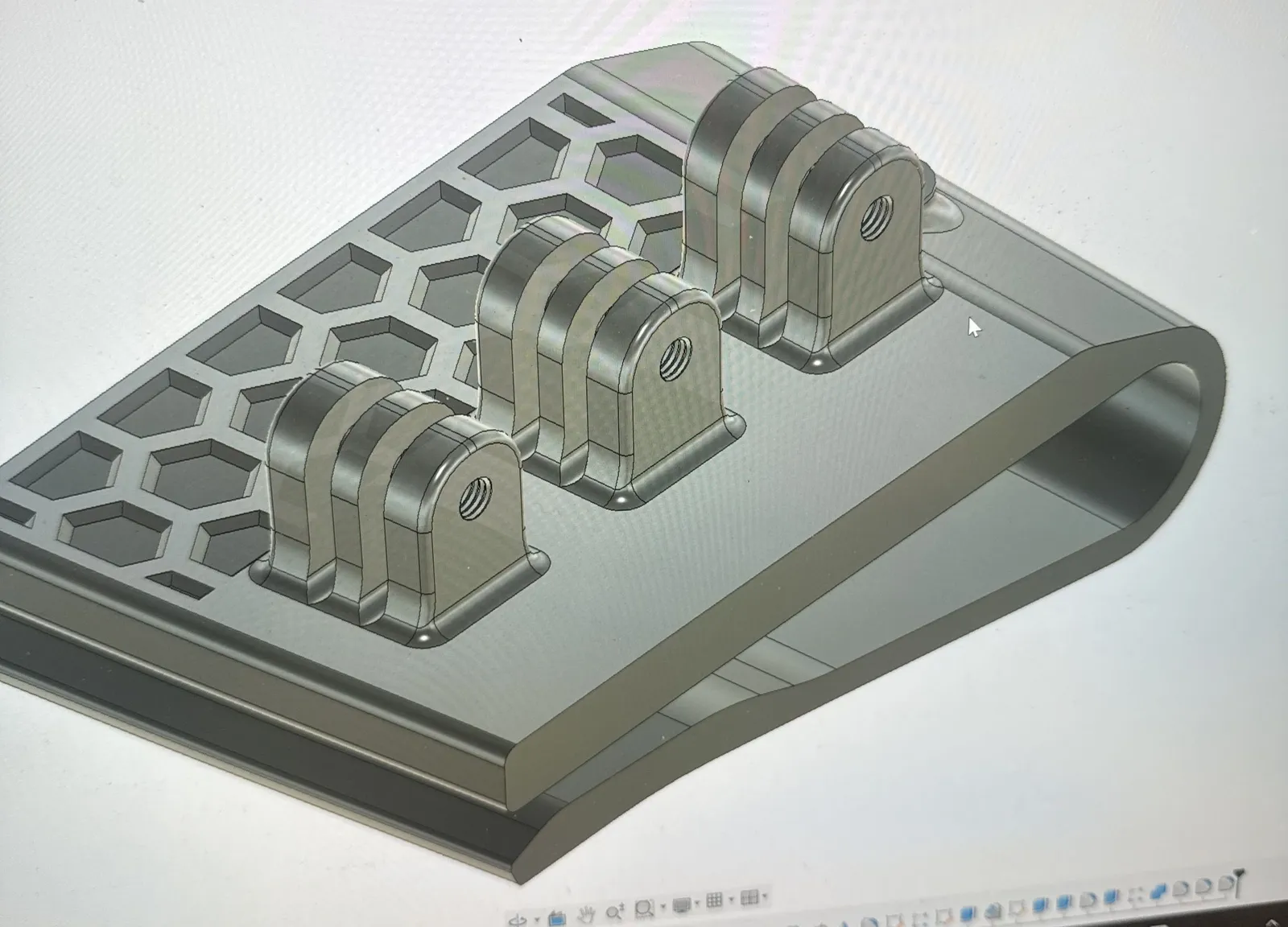

Fig. 04A hex-pattern version in Fusion, with three fixed mounts

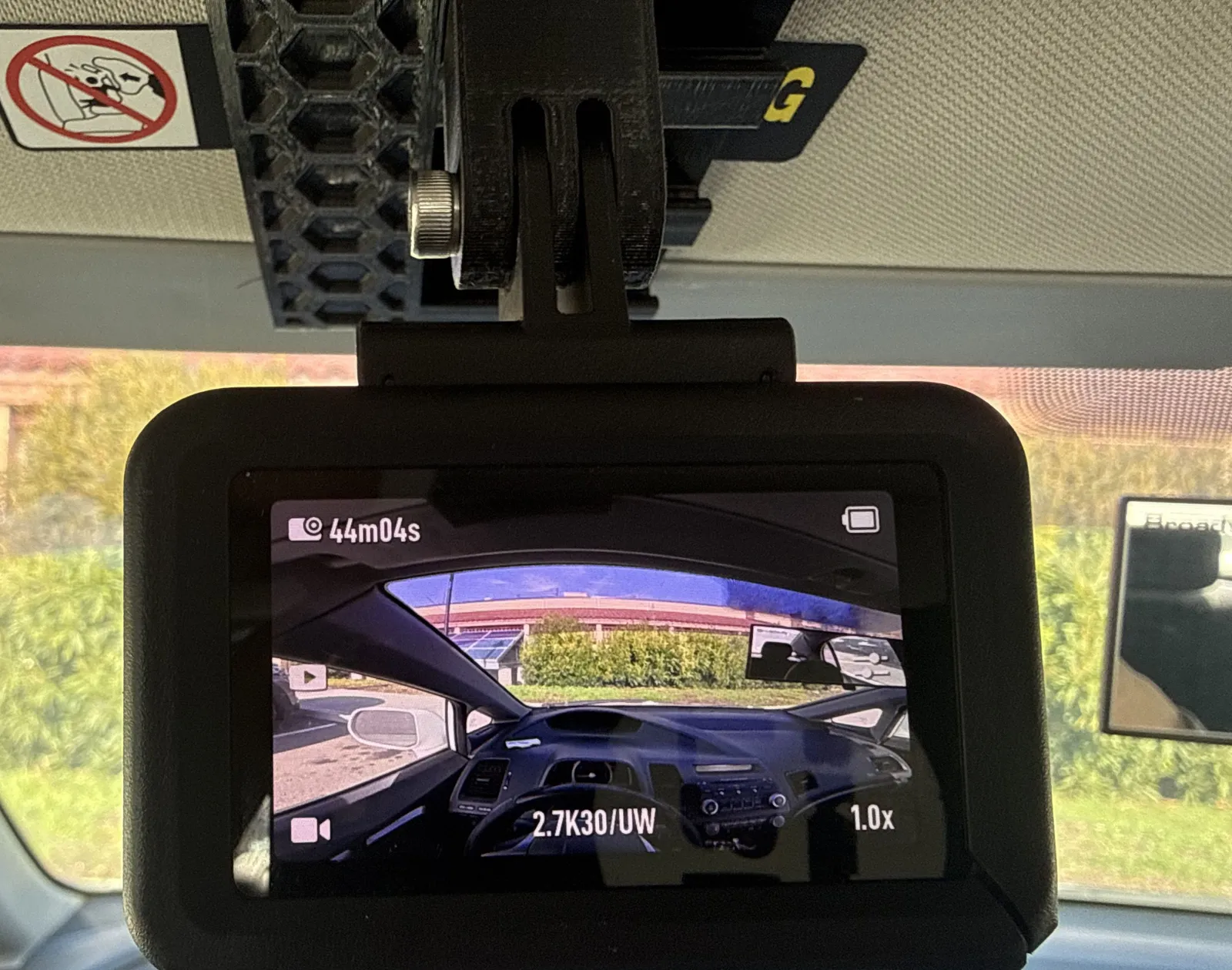

Fig. 05The black hex-pattern clip on a car sun visor, holding an action camera

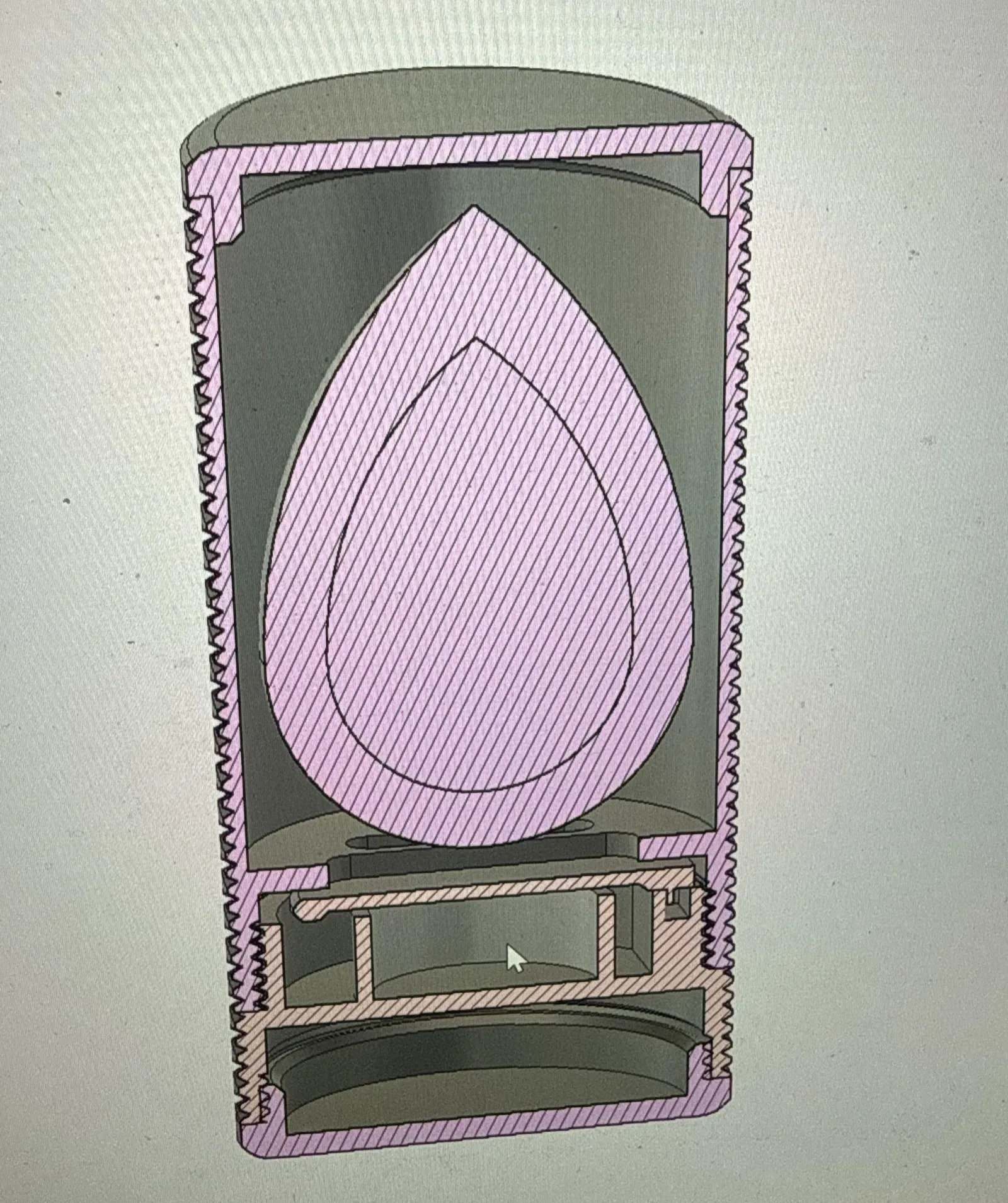

Fig. 06Section view in CAD of a threaded container with an insert in its base

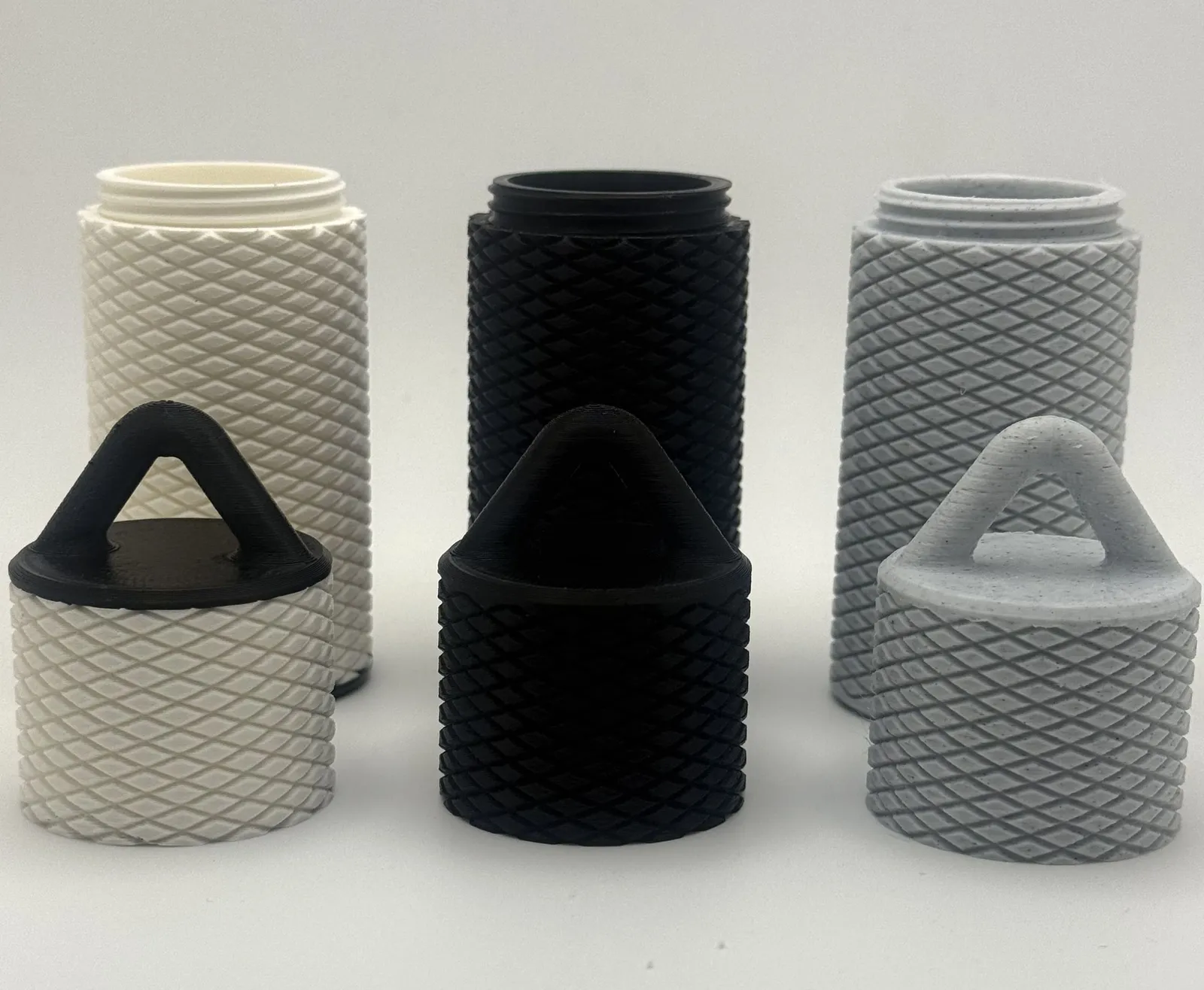

Fig. 07Bodies and caps in three colours, with the threads showing

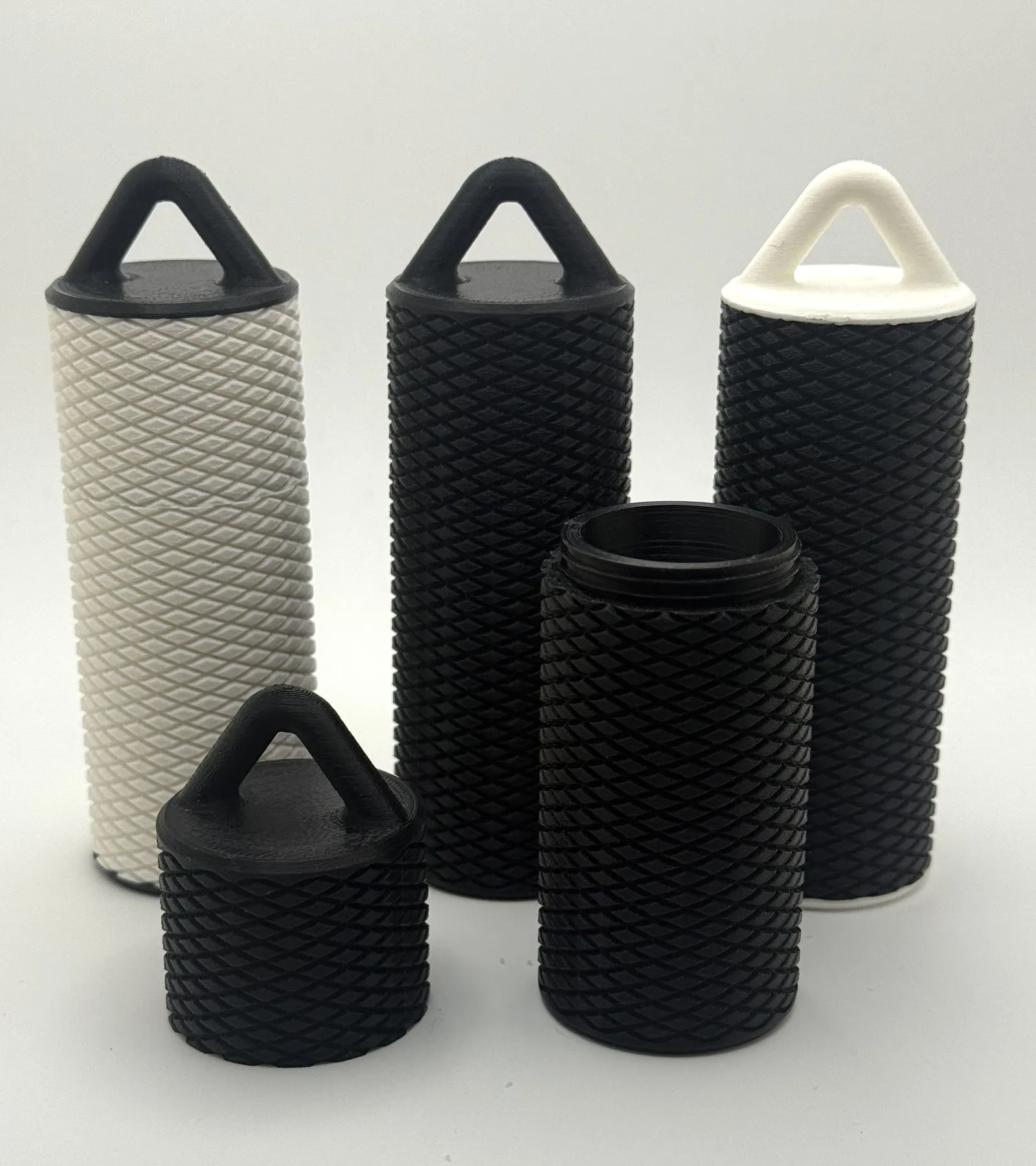

Fig. 08Closed containers, some with a contrasting top and base, and one body open

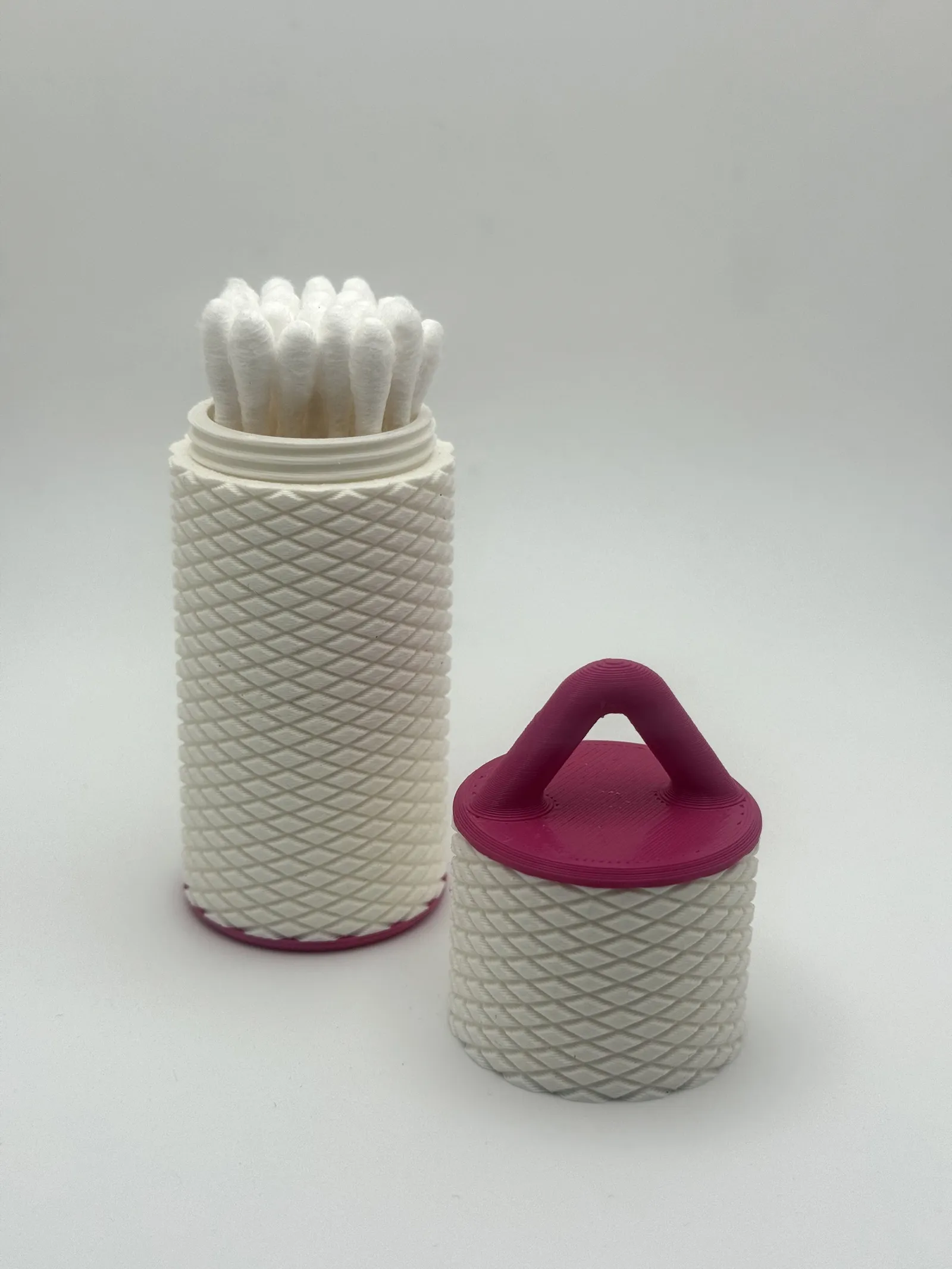

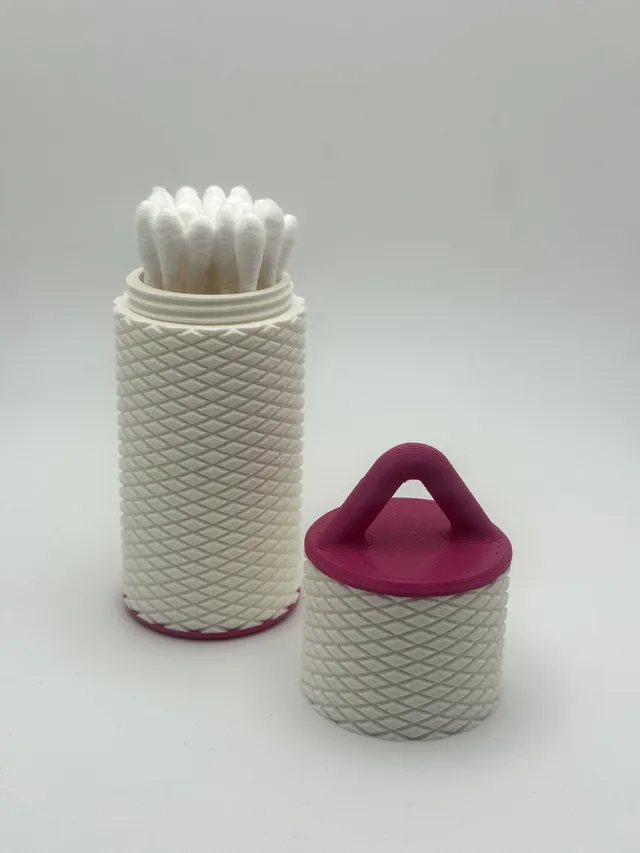

Fig. 09Holding cotton swabs, with the cap off

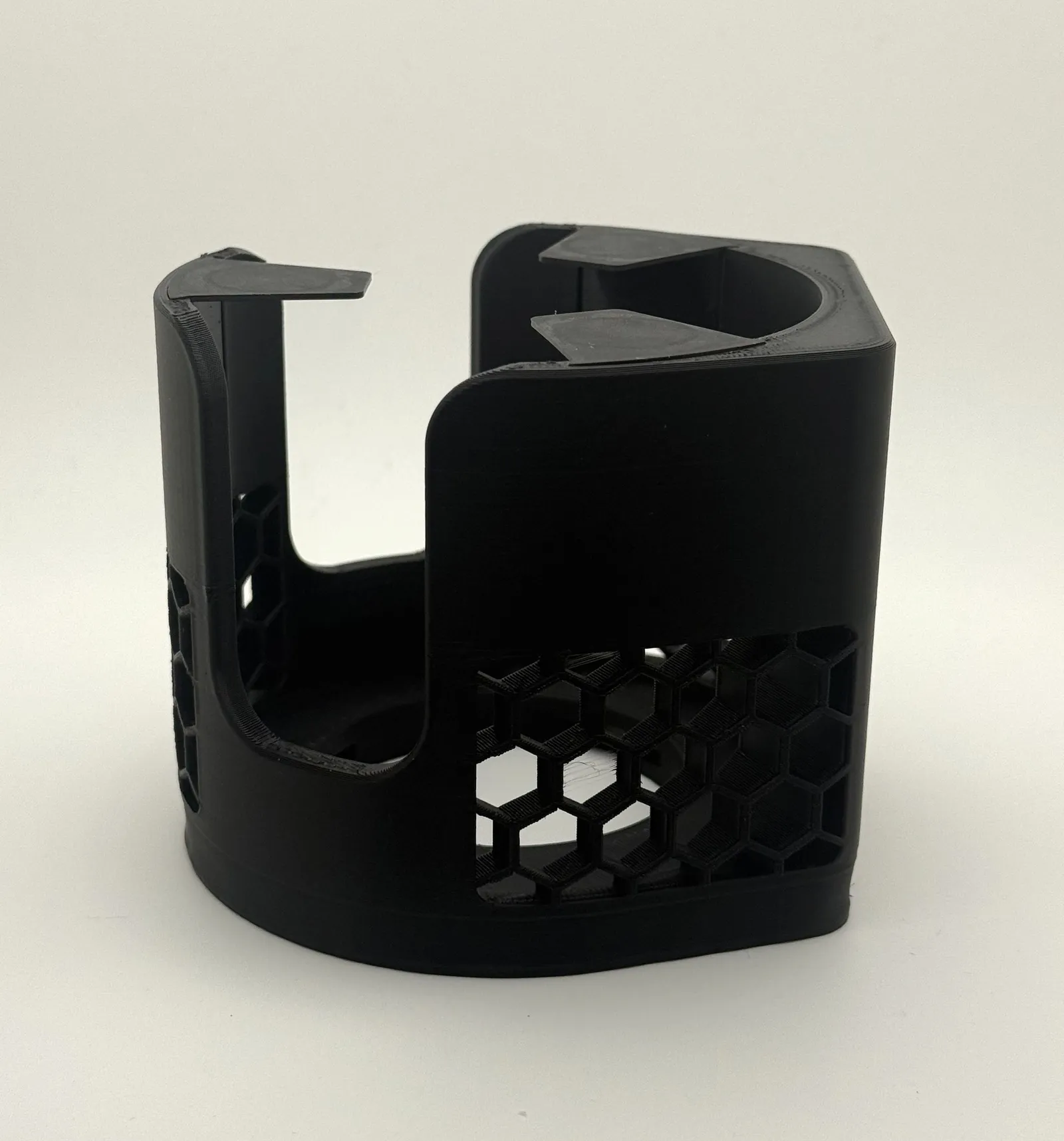

Fig. 10One cup holder, with a slot for a mug handle and hexagon cut-outs in the walls

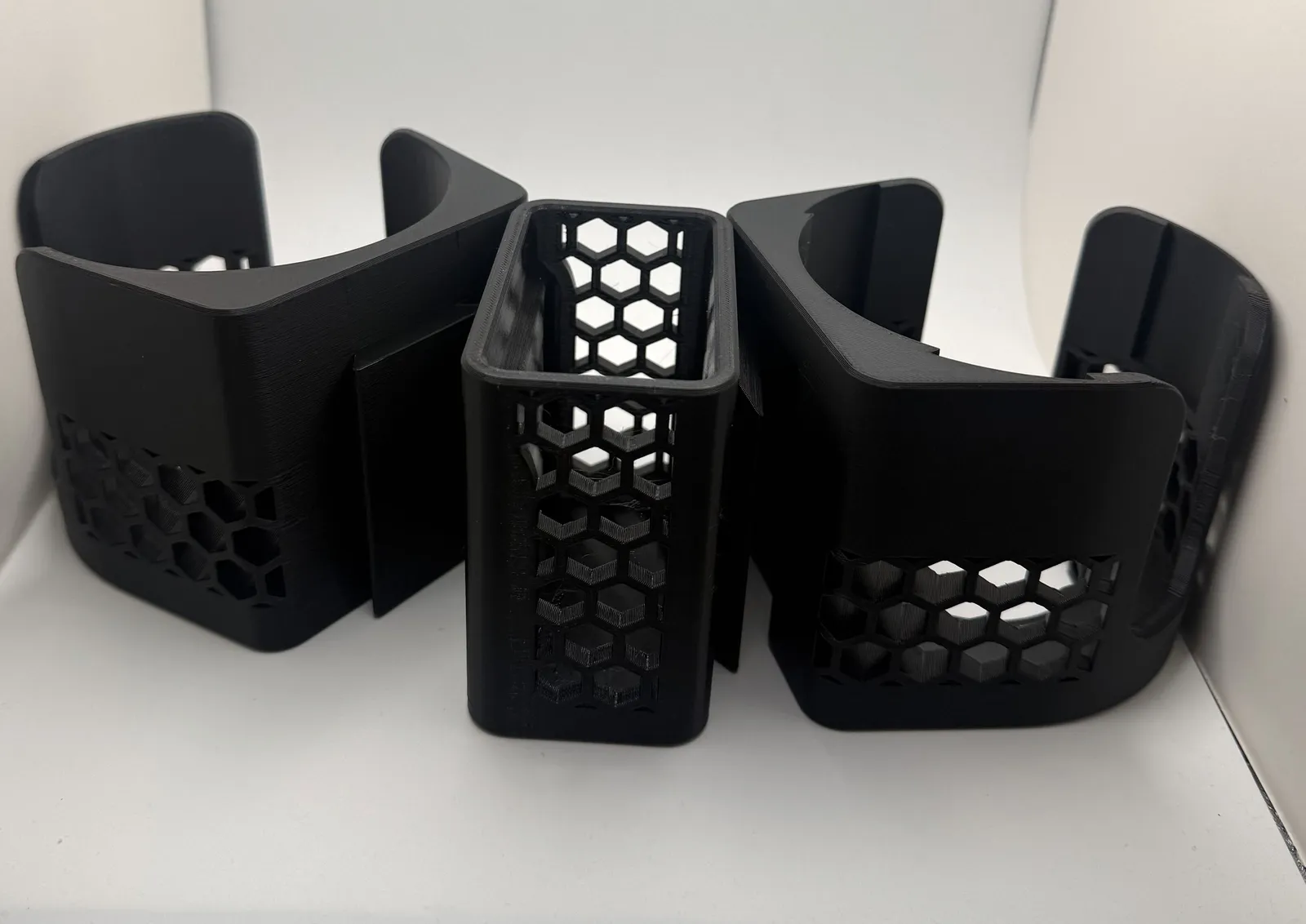

Fig. 11Two cup holders and the rectangular holder

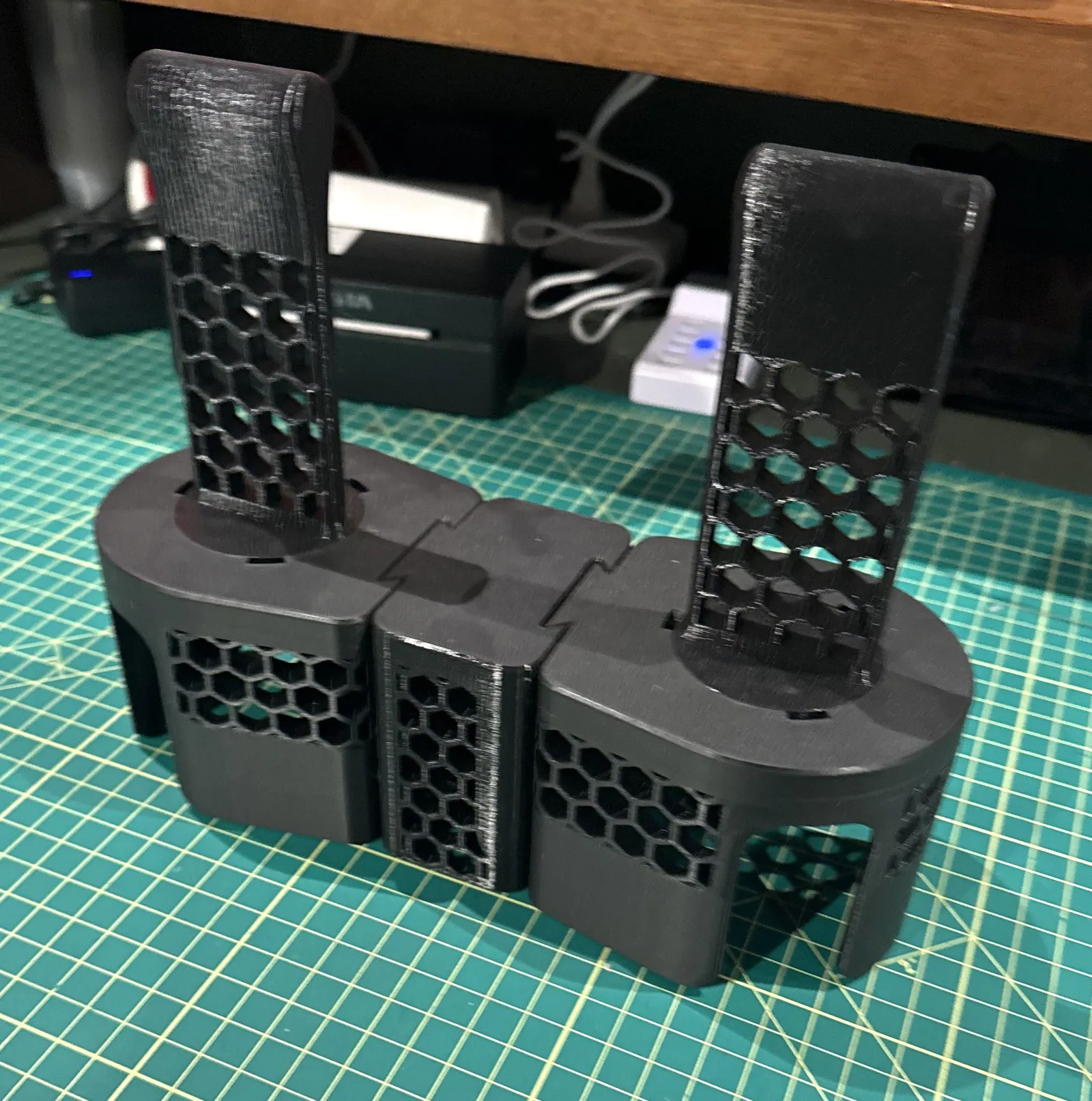

Fig. 12Turned upside down: two cup holders and the rectangular holder joined at their bases, with a tall hex piece standing in each round base opening

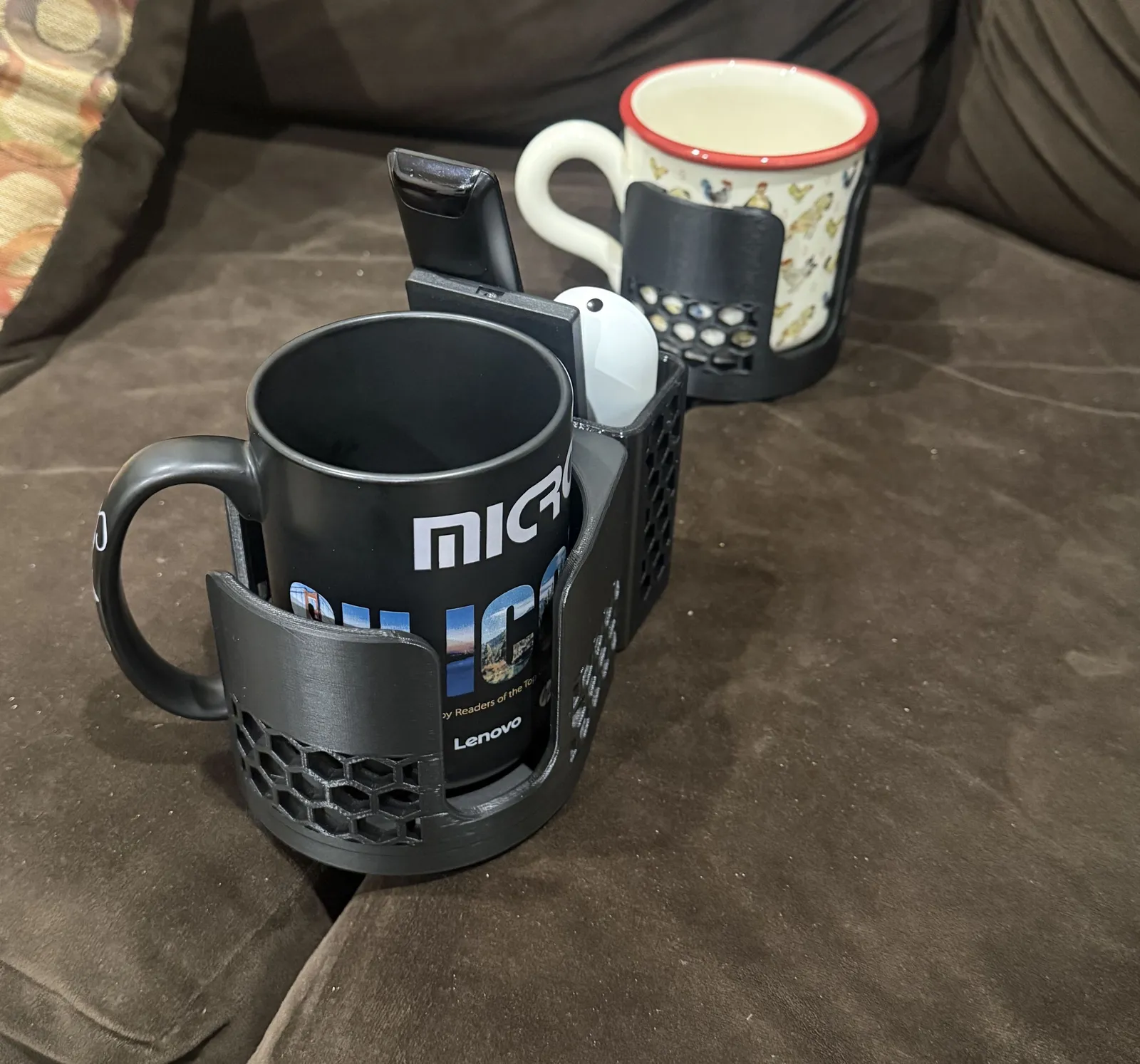

Fig. 13Two cup holders and the rectangular holder joined in a row on a couch, holding two mugs and a remote
