Lever depressors and chain tension gauges

3D-printed brake and clutch lever depressors and chain tension gauges for motorbikes, with my TBD Bikes logo.

Date
Feb 2026
Media
4 photos
Software
Fusion 360
Gauge steps
47 to 67 and 60 to 80
Disciplines
Motocross3D PrintingCAD

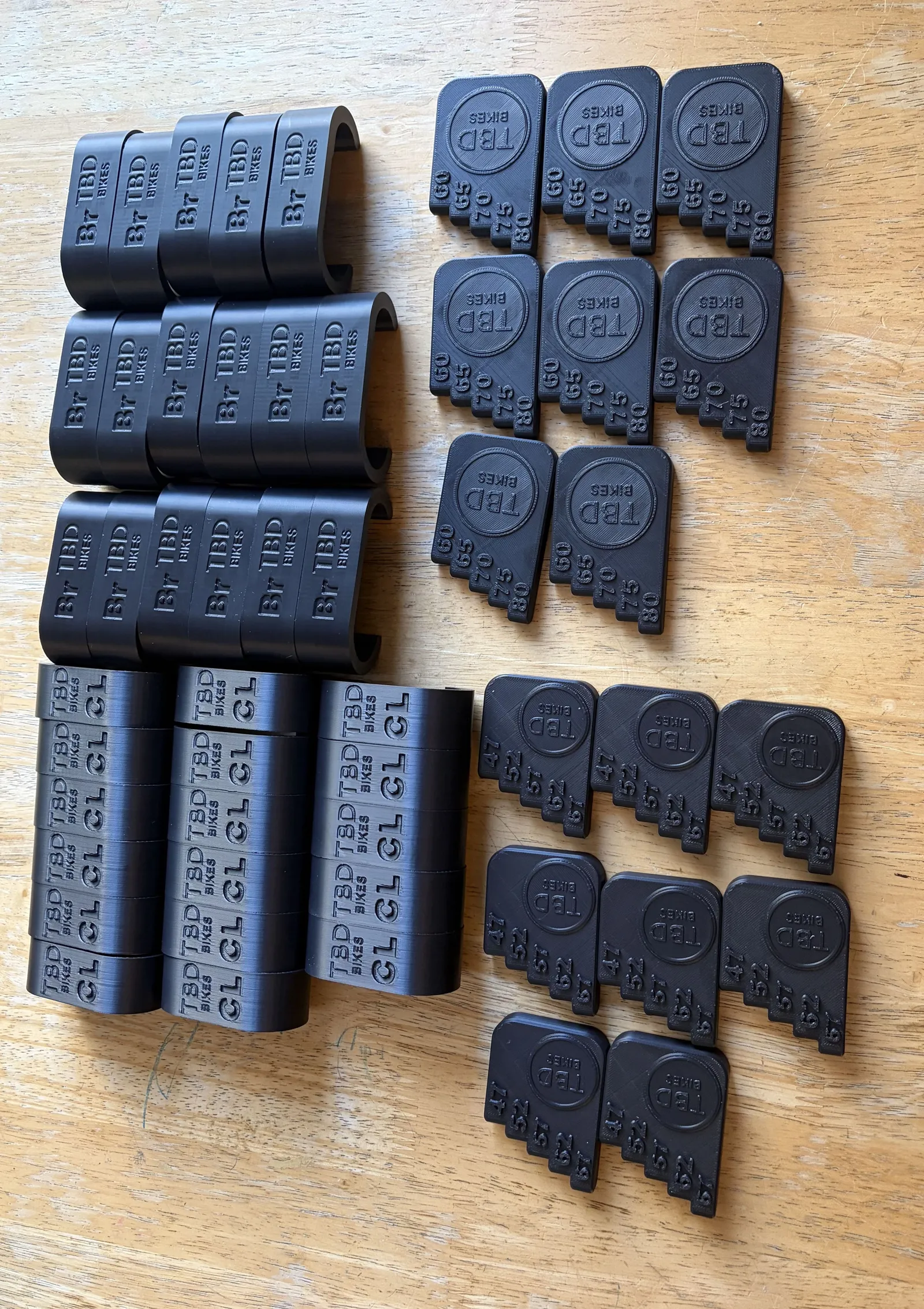

Fig. 01A printed batch: Br (brake) and CL (clutch) lever depressors with the TBD Bikes logo, and chain tension gauges numbered 60-80 and 47-67Enlarge

Notes

Brake and clutch lever depressors and chain tension gauges for motorbikes, 3D printed. A lever depressor clips over a brake or clutch lever and holds it pulled in. I modelled them in Fusion 360. The printed batch carries my TBD Bikes logo, with "Br" on the brake depressors and "CL" on the clutch ones; an earlier pair is marked "Brake" and "C".

The chain tension gauges are stepped tabs in two ranges, 47 to 67 and 60 to 80. The grey test prints have the 47 to 67 steps, and each is marked "Good - 57".

Photos

3 figures

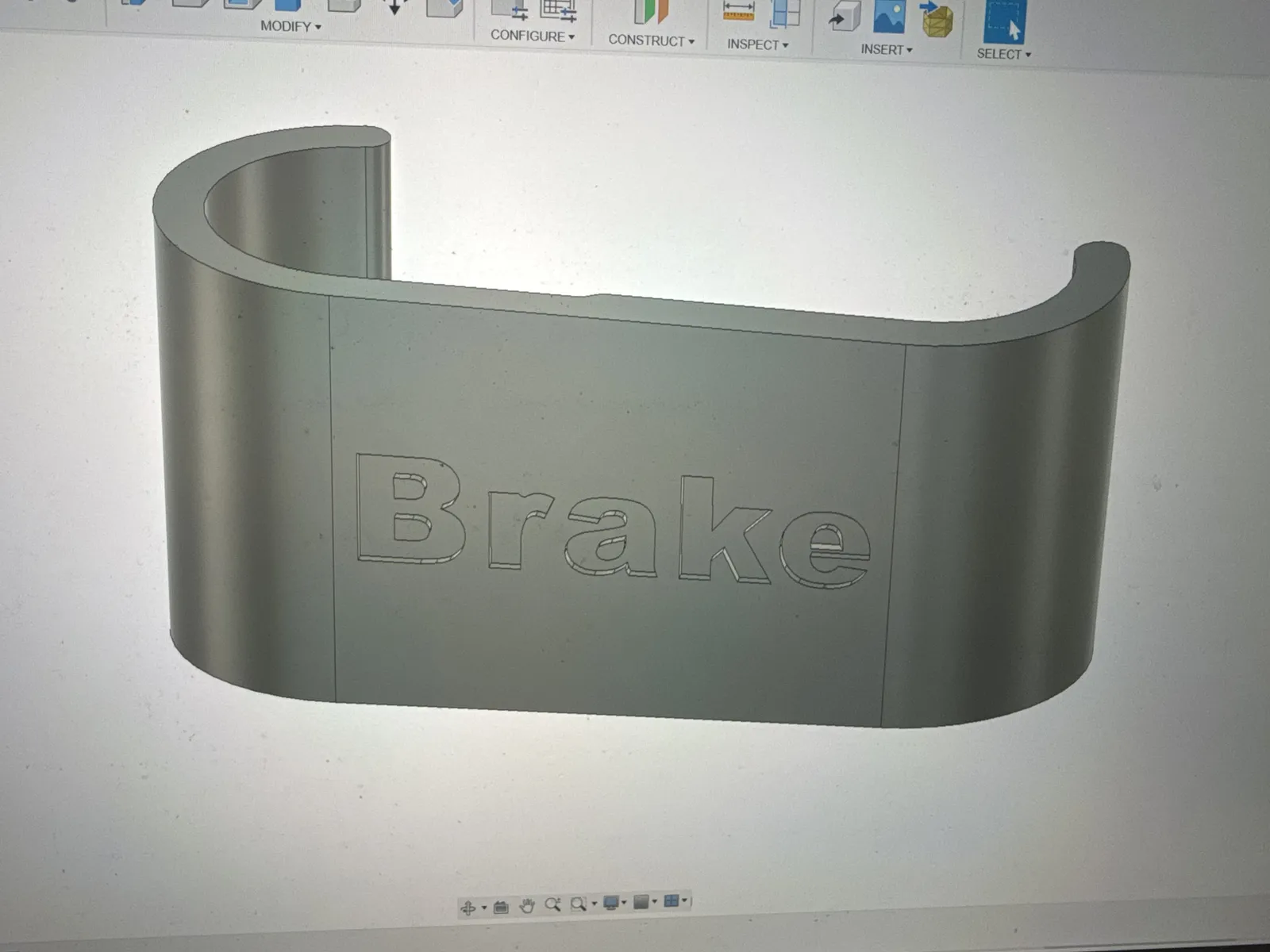

Fig. 02The brake lever depressor in Fusion 360

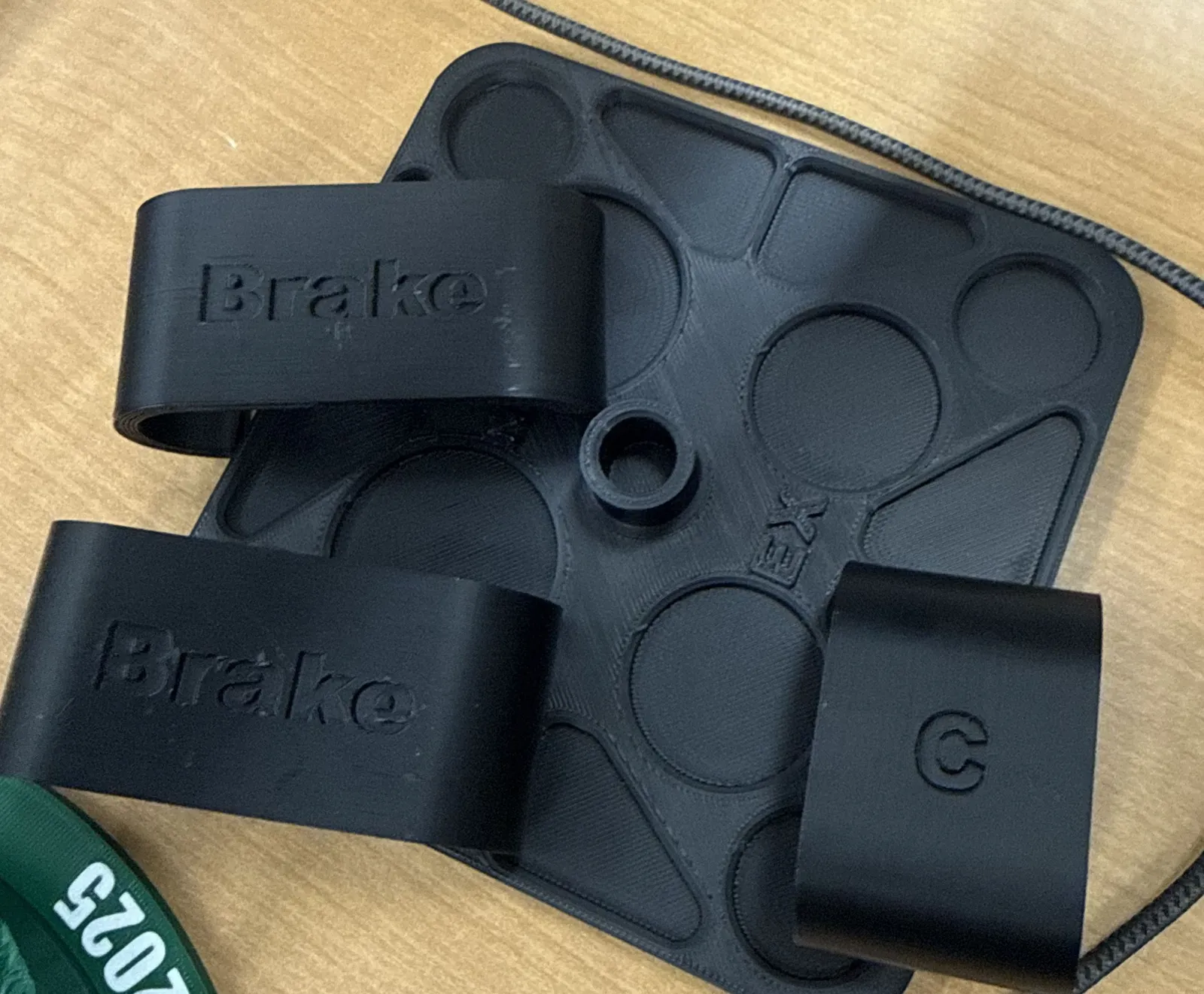

Fig. 03Printed brake and clutch lever depressors, marked "Brake" and "C", on a plate with round and triangular pockets

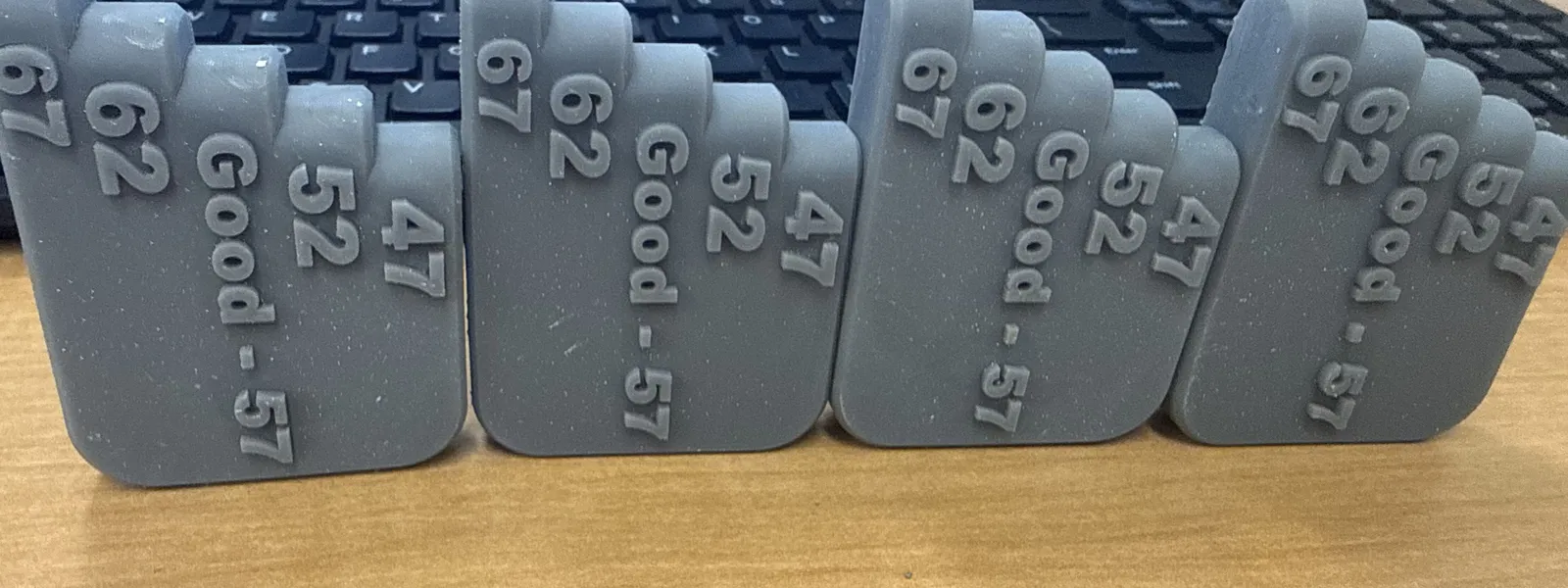

Fig. 04Chain tension gauges numbered 47 to 67, each marked "Good - 57"
