Sheet 22 of 22

Other prints

Smaller 3D prints: piston models, moving mechanisms, a clearance test and a printed bolt, plus a 3D scan.

Date: Sep 2026
Media: 10 photos · 2 videos
Disciplines: 3D Printing

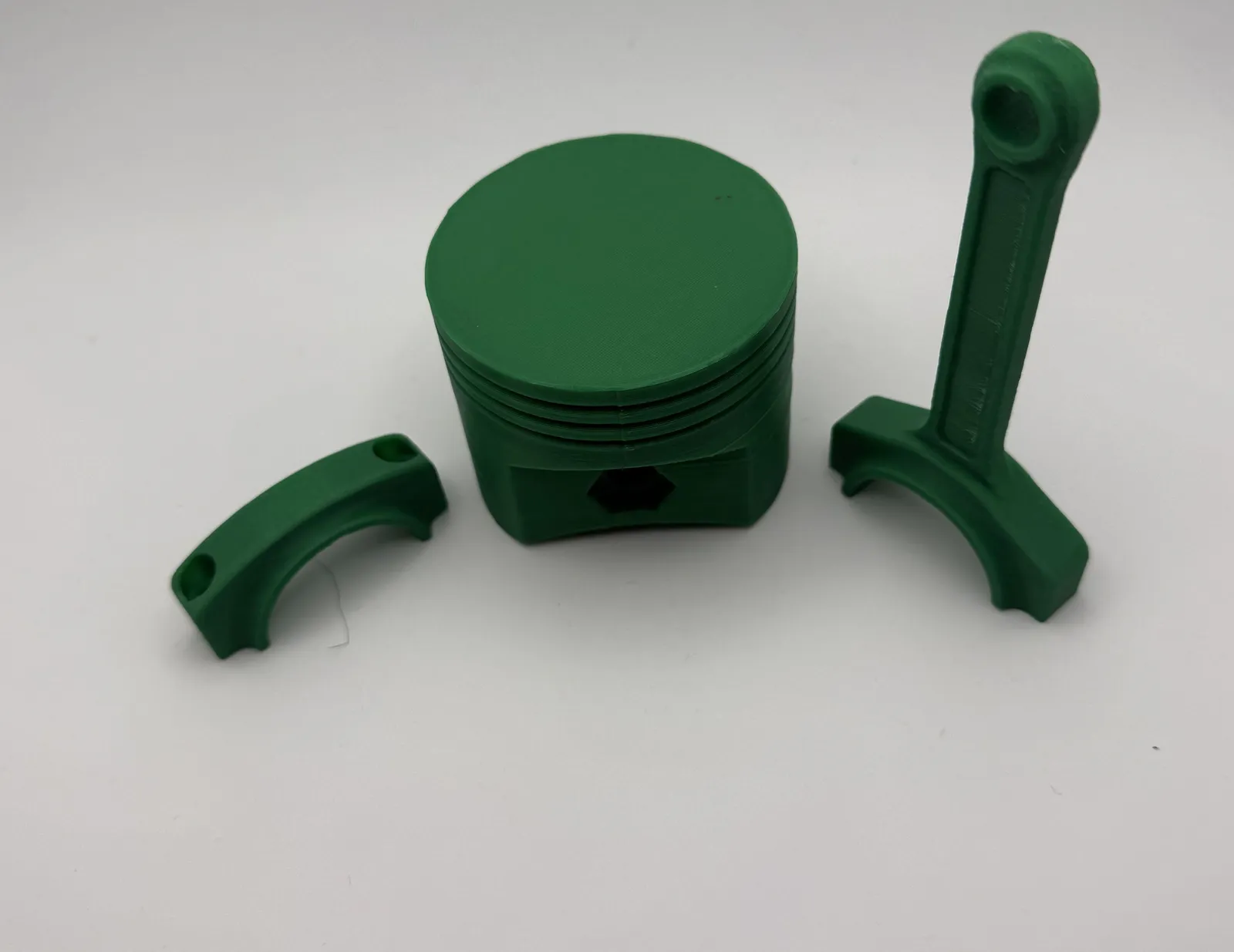

Fig. 01A green piston, connecting rod and rod capEnlarge

Notes

These are smaller prints that don't have a page of their own. They show the range of what I print besides bike parts: two piston and connecting-rod sets, moving mechanisms like a scissor linkage and a planetary gearset, a clearance test and a printed bolt and nuts, a grip with a bearing in it, three versions of a bracket, and a tray on an Ultimaker 3.

There's also a 3D scan of a shoe in Revo Scan, and a printed plaque with the De Anza College logo that reads Additive Manufacturing, with my name and the date 5/8/25.

Photos and videos

11 figures

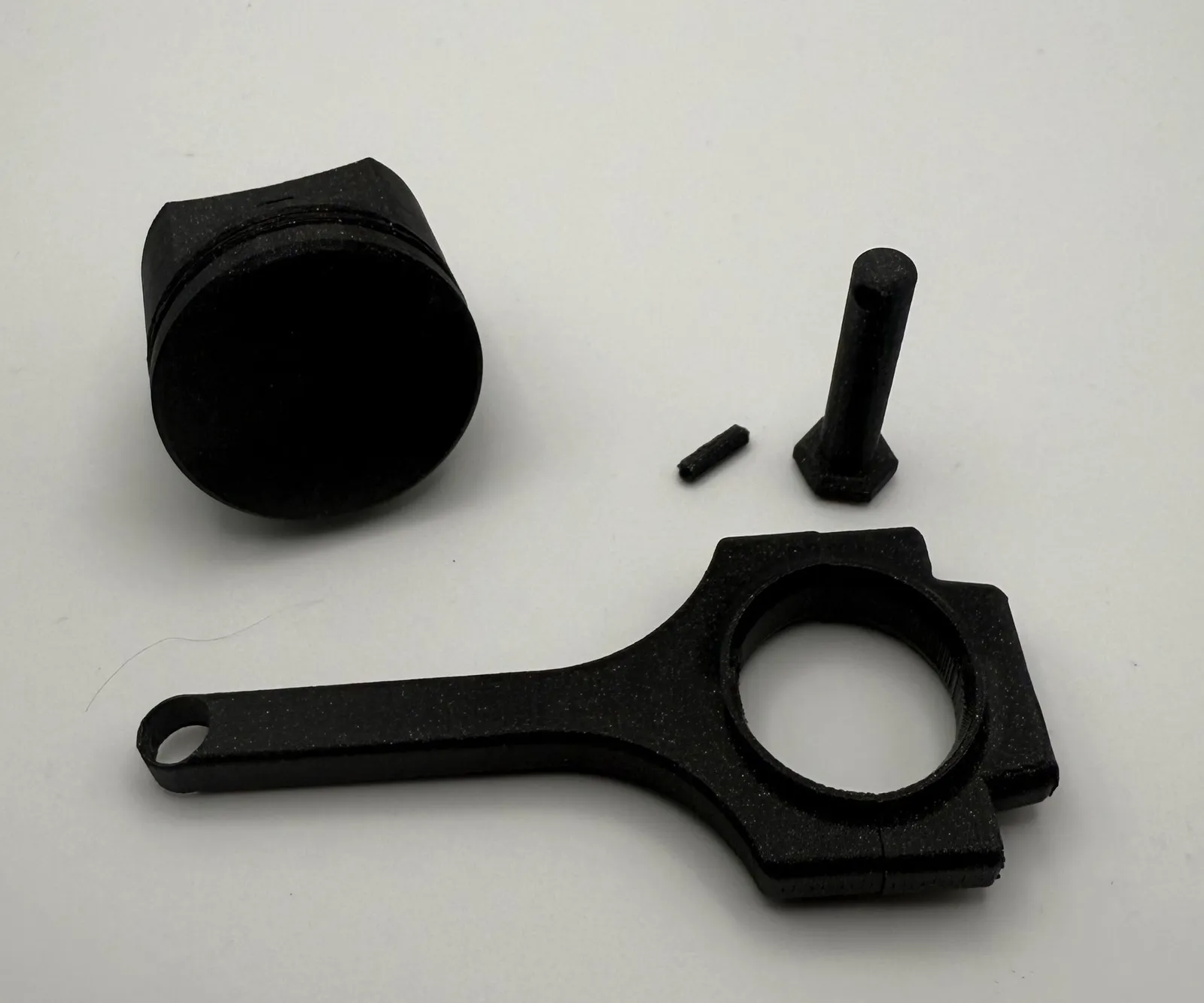

Fig. 02A black piston and connecting rod, with a hex-head pin and a small pin

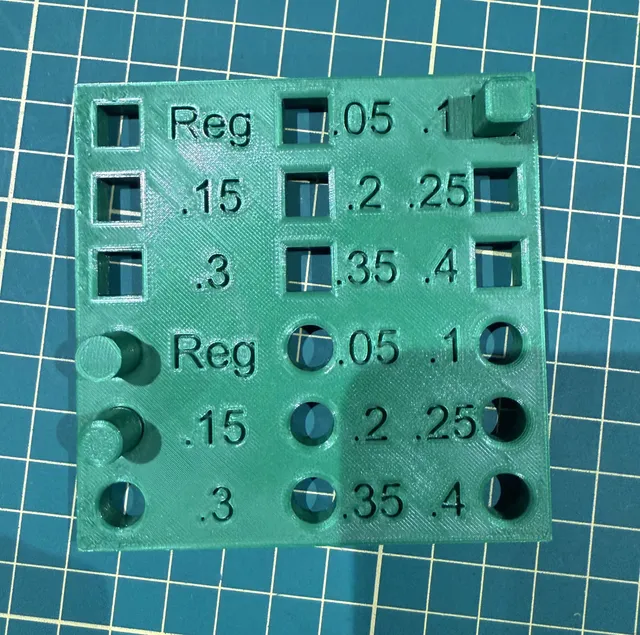

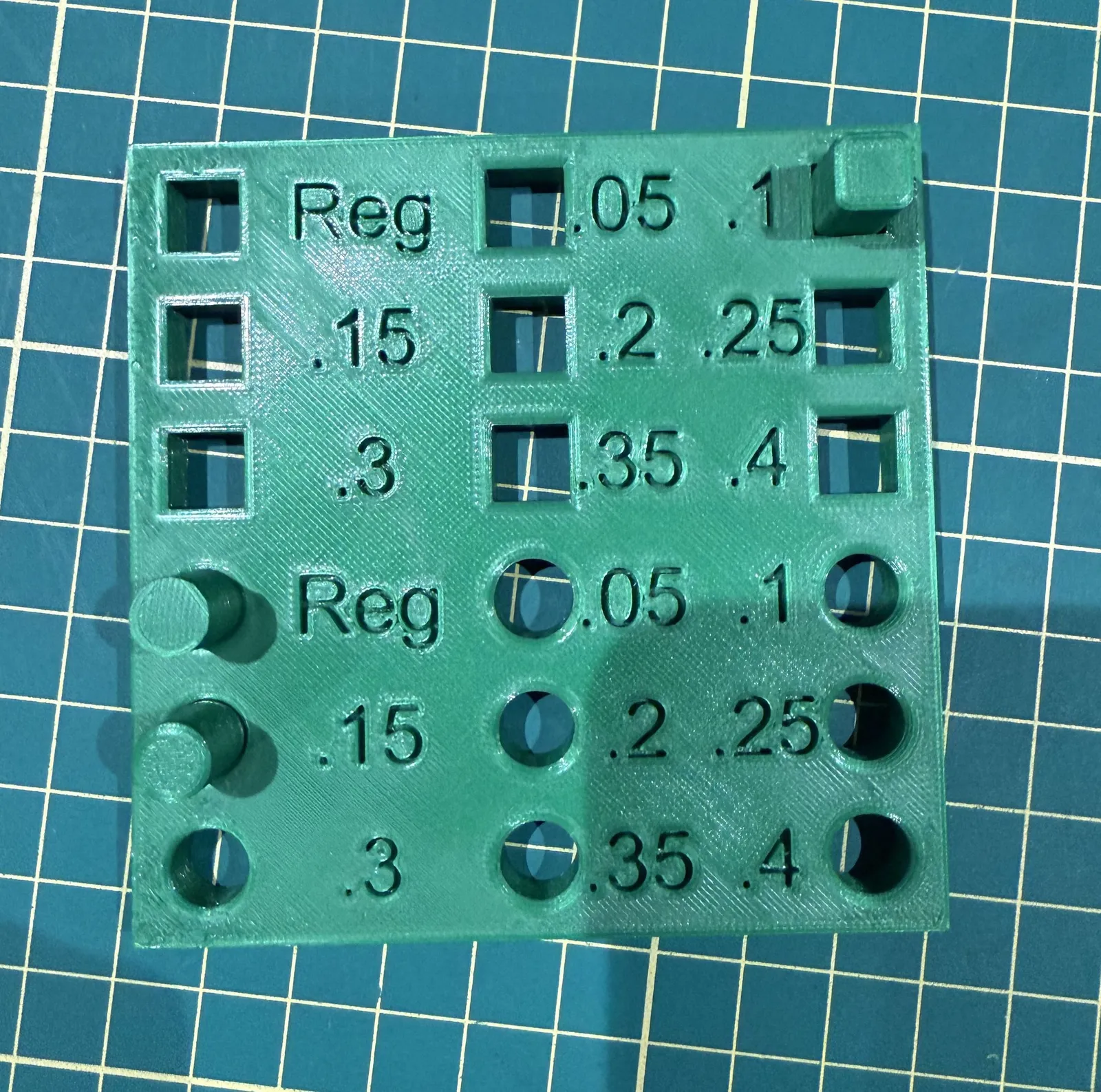

Fig. 03A clearance test: square and round pegs and holes, labelled Reg and .05 to .4

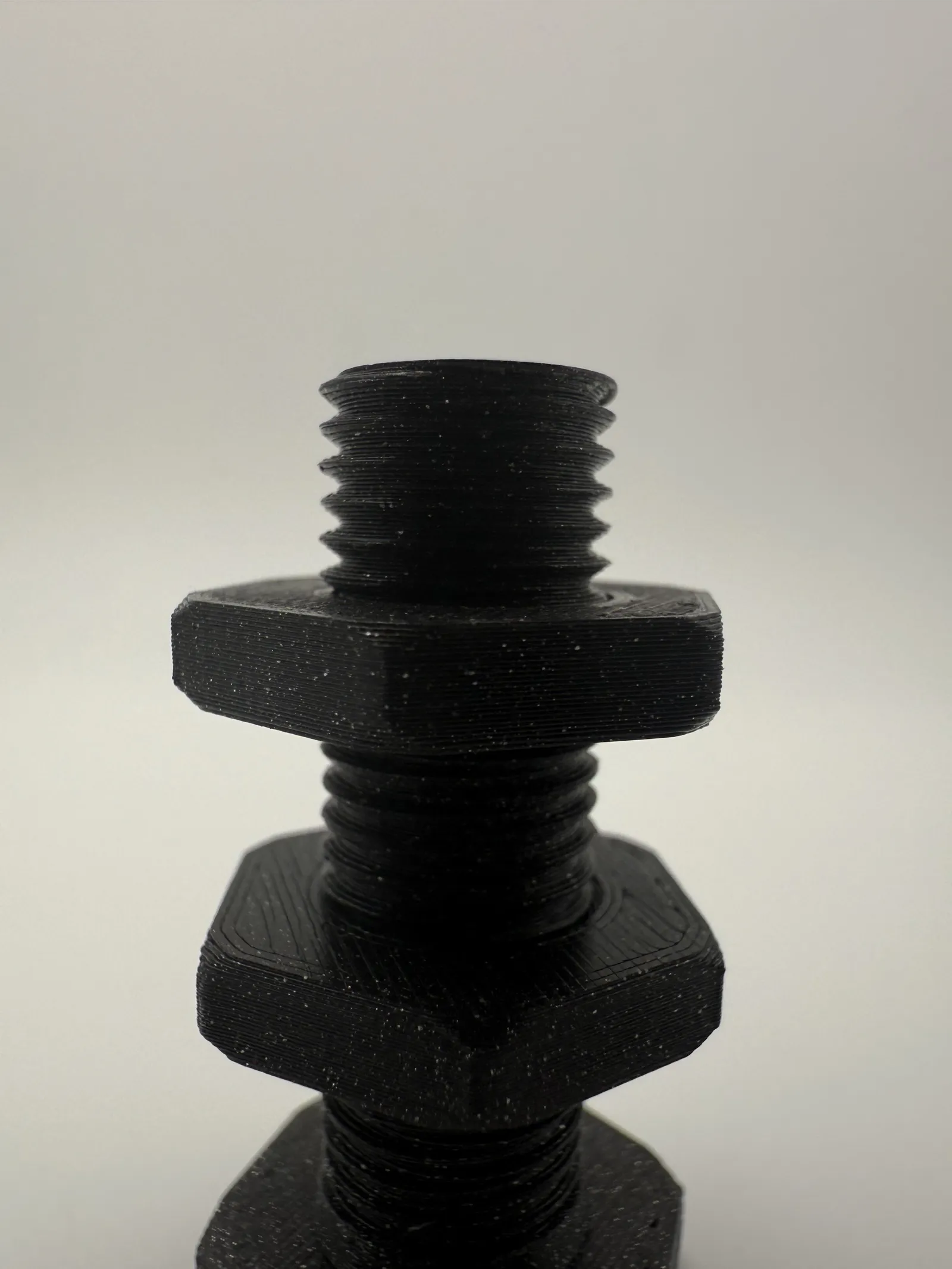

Fig. 04A printed bolt with two nuts threaded on

Clip 0:09

Fig. 05A scissor linkage with pinned joints, opening and closing

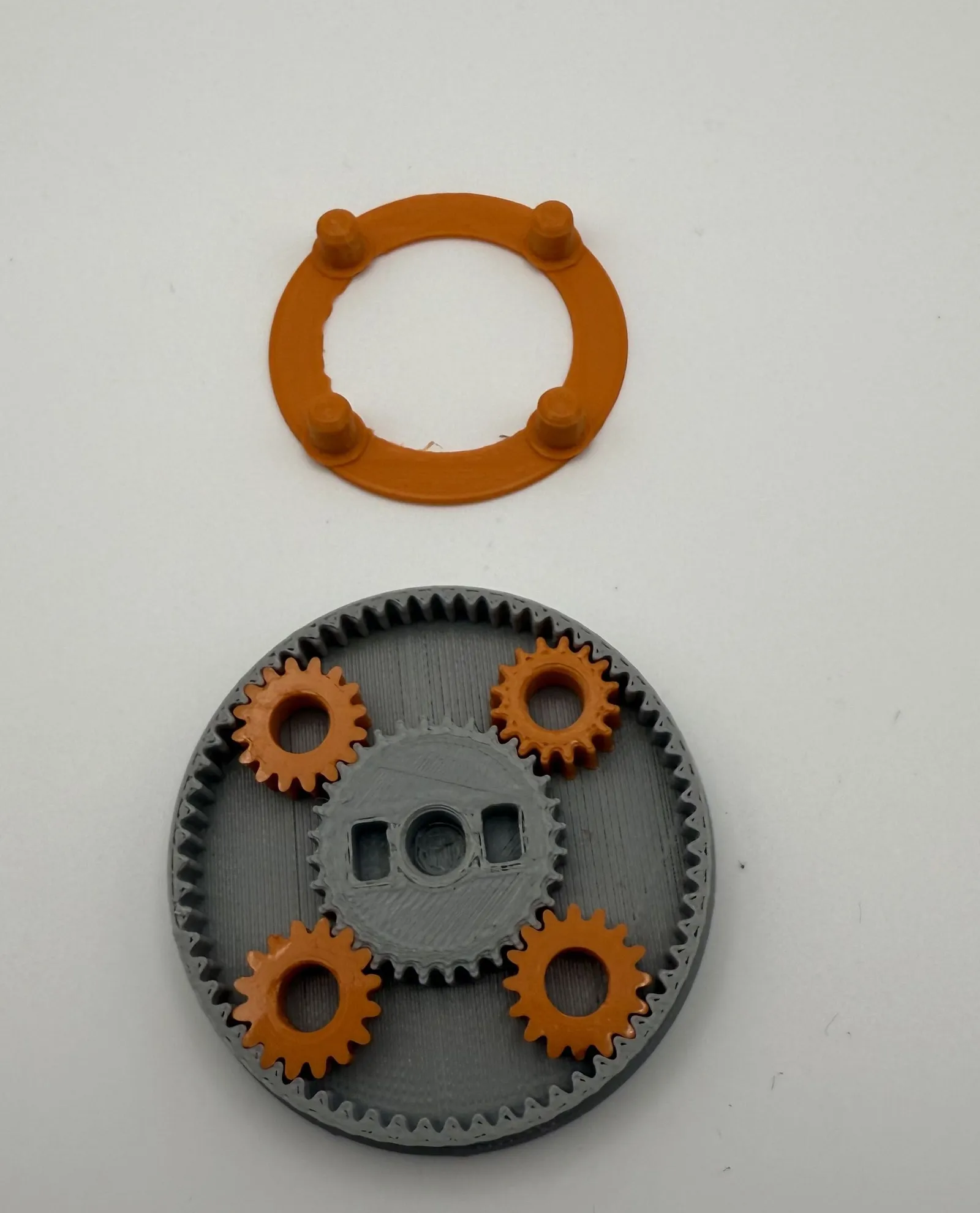

Fig. 06A planetary gearset taken apart: grey ring and sun gears, four orange planet gears and an orange carrier ring

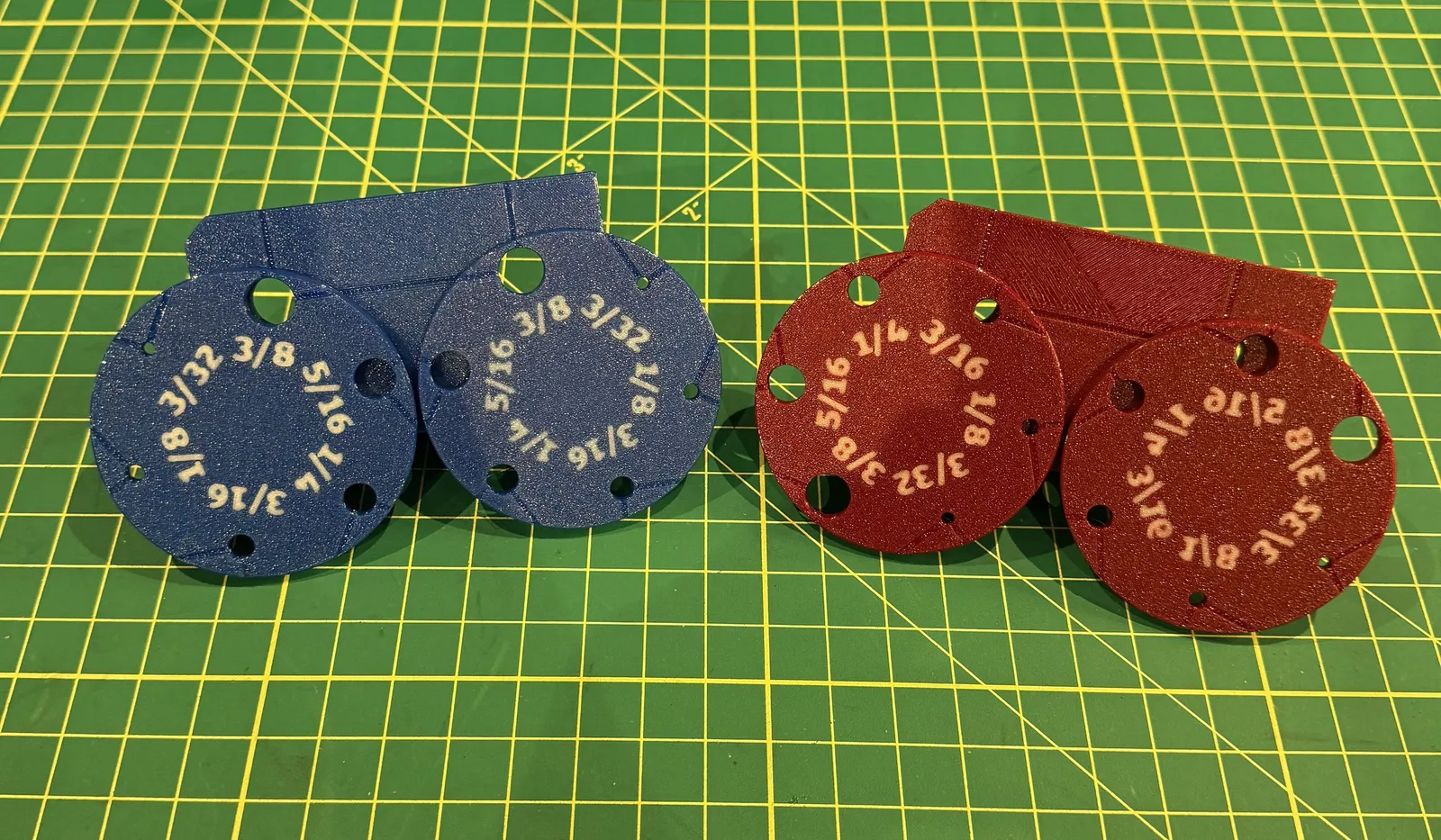

Fig. 07Two pairs of dials marked with fractions from 3/32 to 3/8, in blue and red

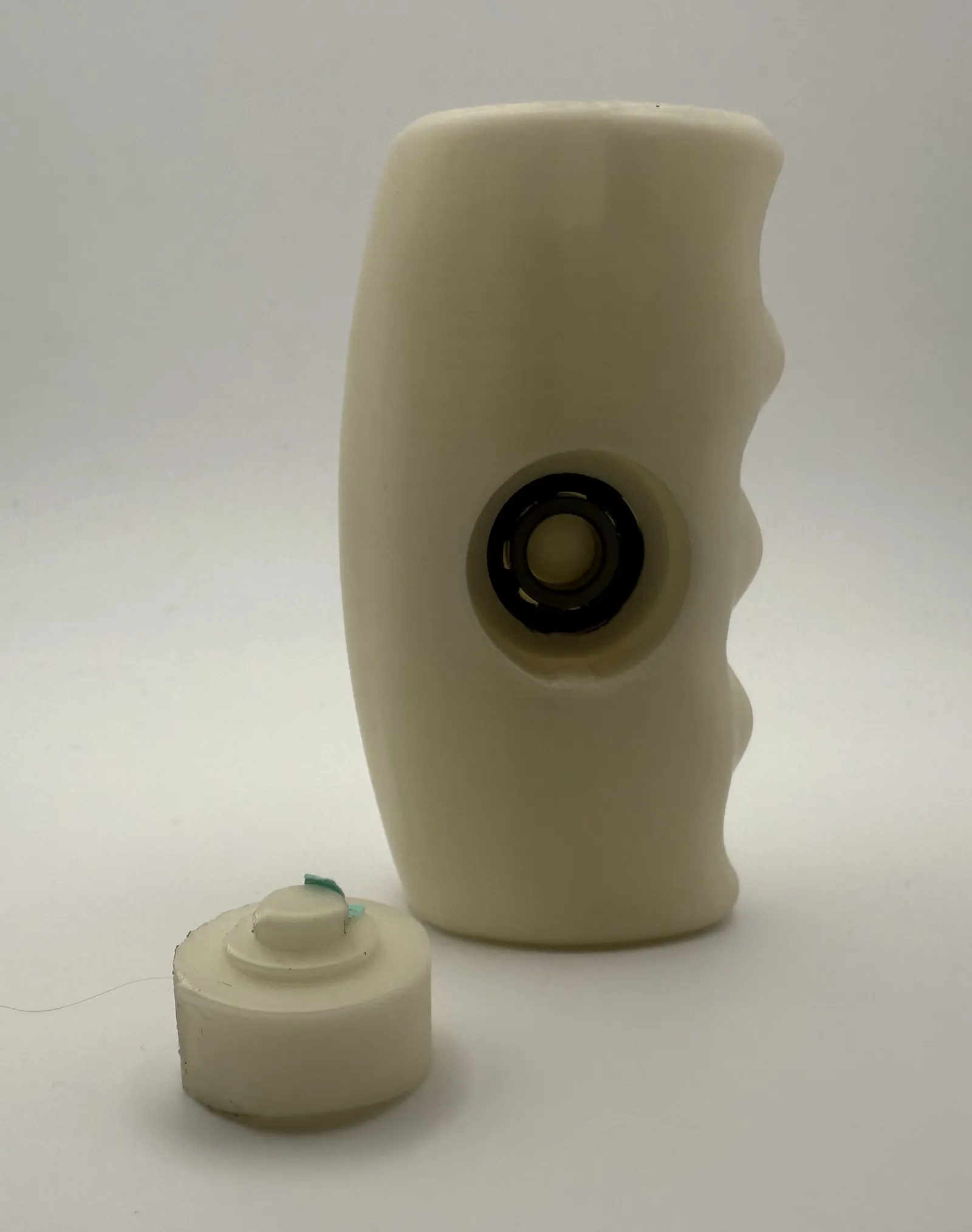

Fig. 08A grip with finger grooves and a bearing pressed into the side, with its cap

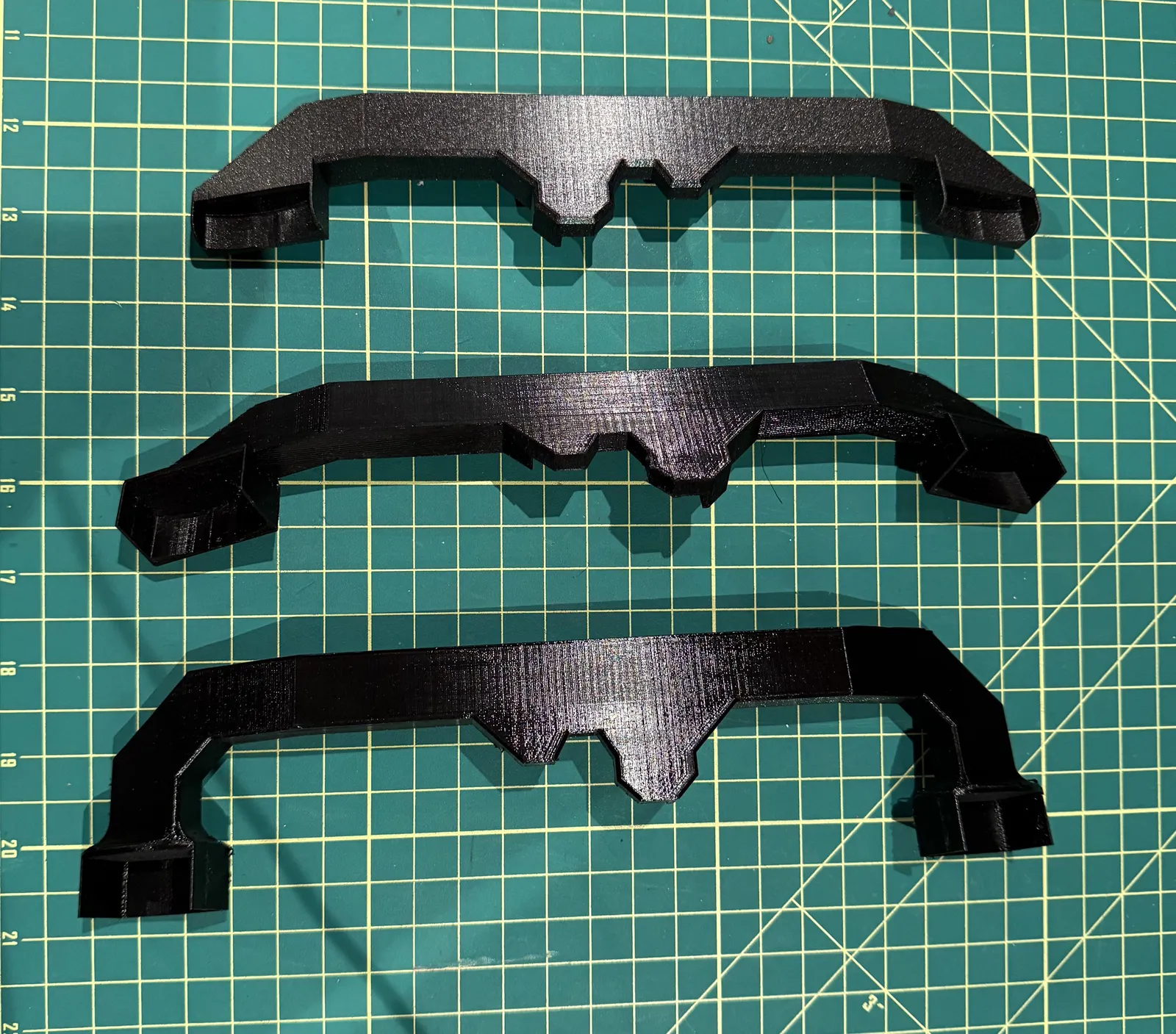

Fig. 09Three versions of a long bracket with box-socket ends

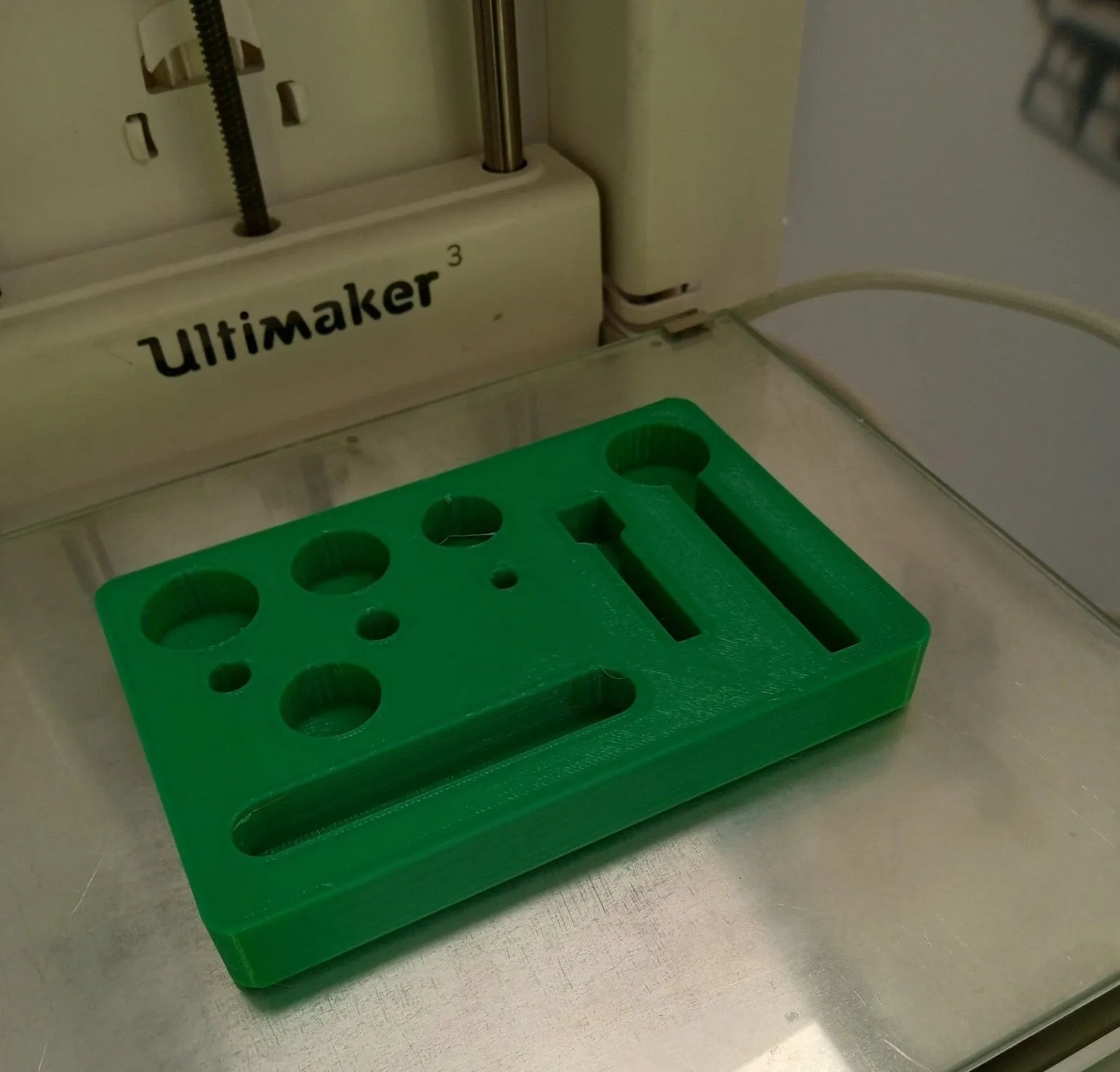

Fig. 10A tray with round and slot pockets, on the build plate of an Ultimaker 3

Clip 0:07

Fig. 11A 3D scan of a shoe, turned around in Revo Scan
