AMD event display stands, printed in batches

A printed stand for AMD summit cards, nested into PreForm builds and made by the dozen.

Date
Apr 2026
Media
6 photos
Build setup
Formlabs PreForm, Fuse 1 profile, Nylon 12, 0.110 mm layers
Build 1 (PreForm estimate)
19 plates, 44 h 53 m
Build 2 (PreForm estimate)
20 hinge-file parts and 1 plate, 47 h 55 m
Disciplines
3D PrintingCAD

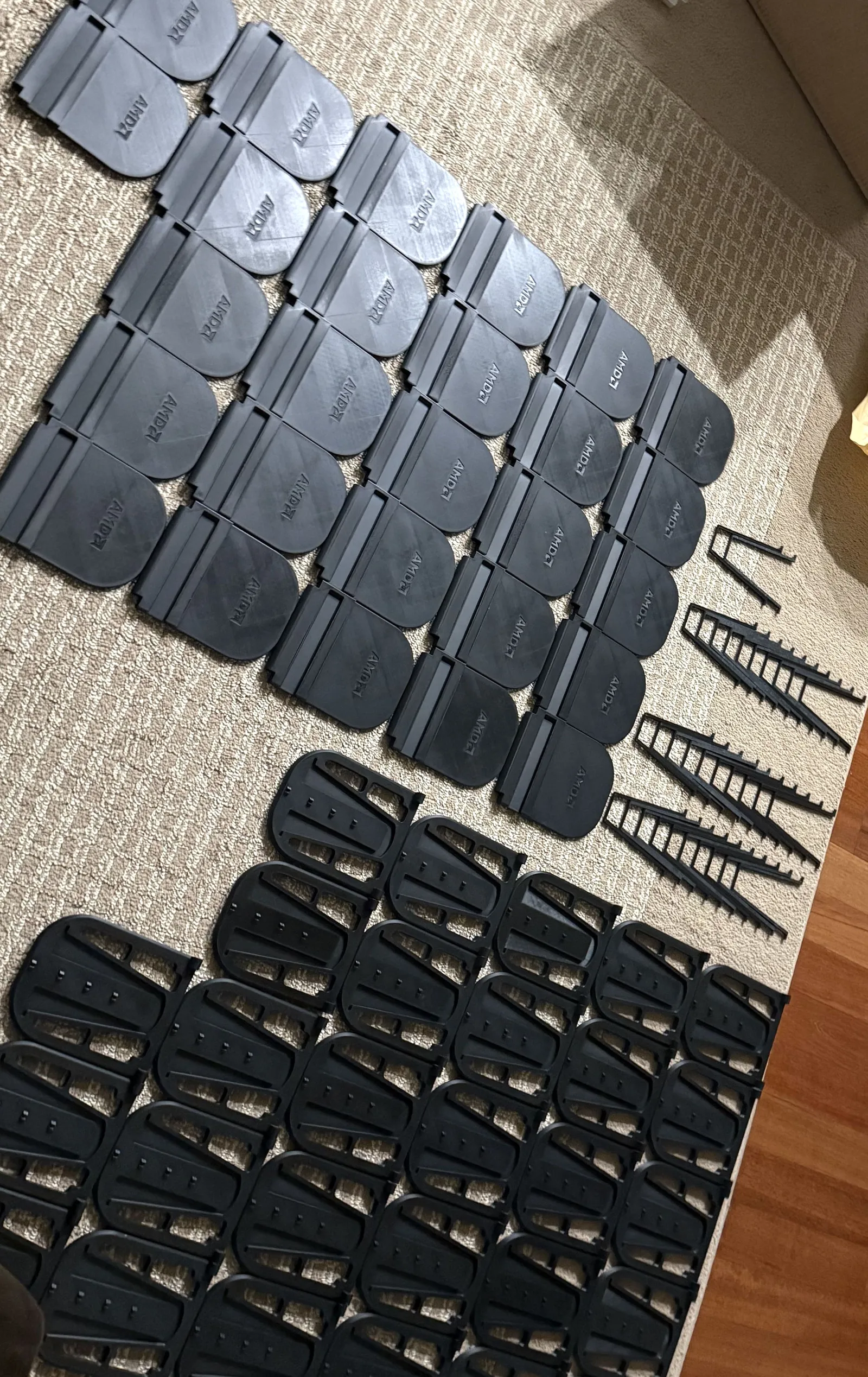

Fig. 01One batch of stand parts laid out: front plates, back plates and legsEnlarge

Notes

A printed display stand that holds AMD Embedded Computing Summit cards: a front plate with an embossed AMD logo, a back plate with slots, and a leg.

The stands were made by the dozen. I nested the parts into full builds in Formlabs PreForm with a Fuse 1 profile, Nylon 12 and 0.110 mm layers: 19 plates in one build (PreForm estimated 44 h 53 m), and 20 parts from the hinge file plus one plate in the other (47 h 55 m).

Photos

5 figures

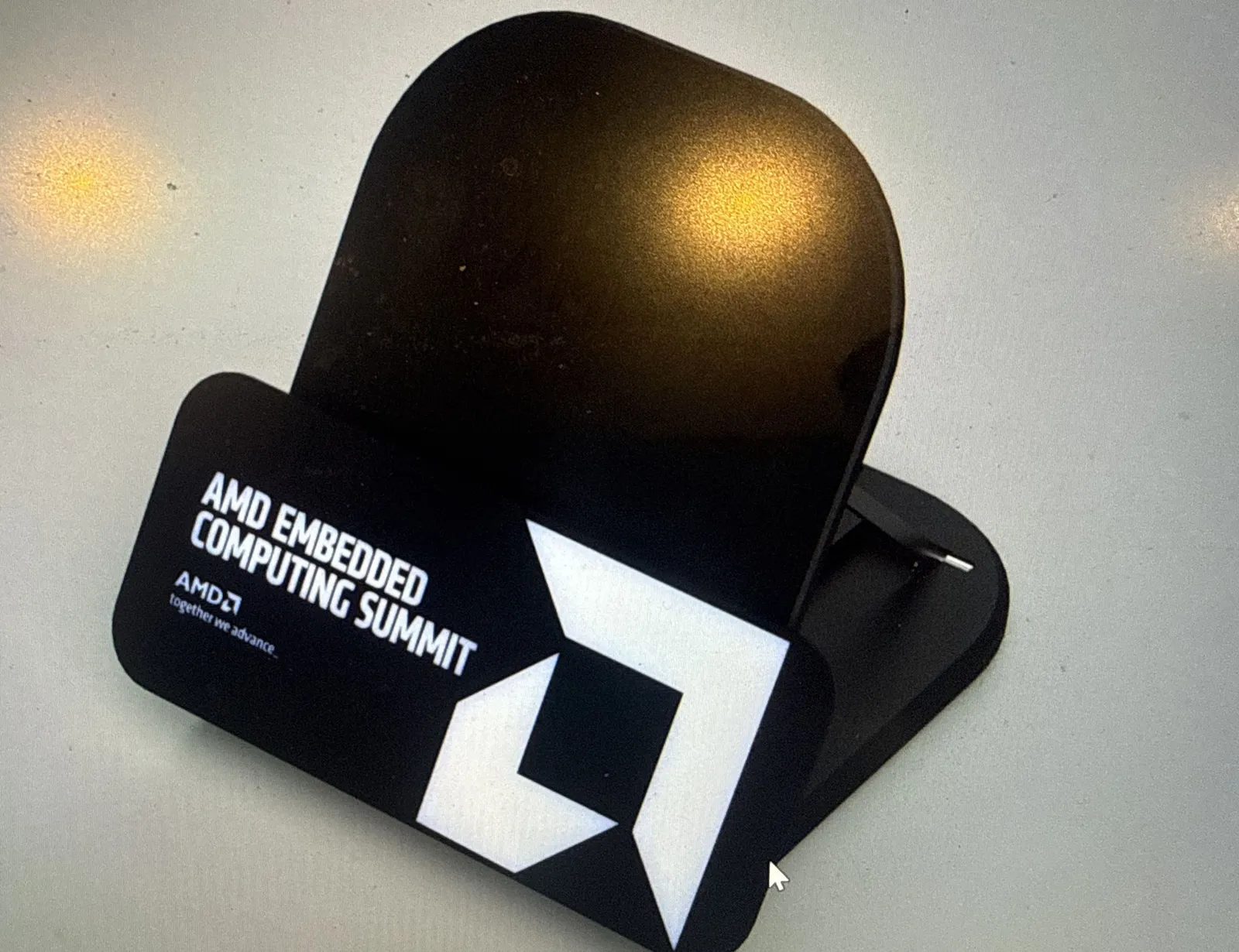

Fig. 02A render of the stand holding an AMD Embedded Computing Summit card

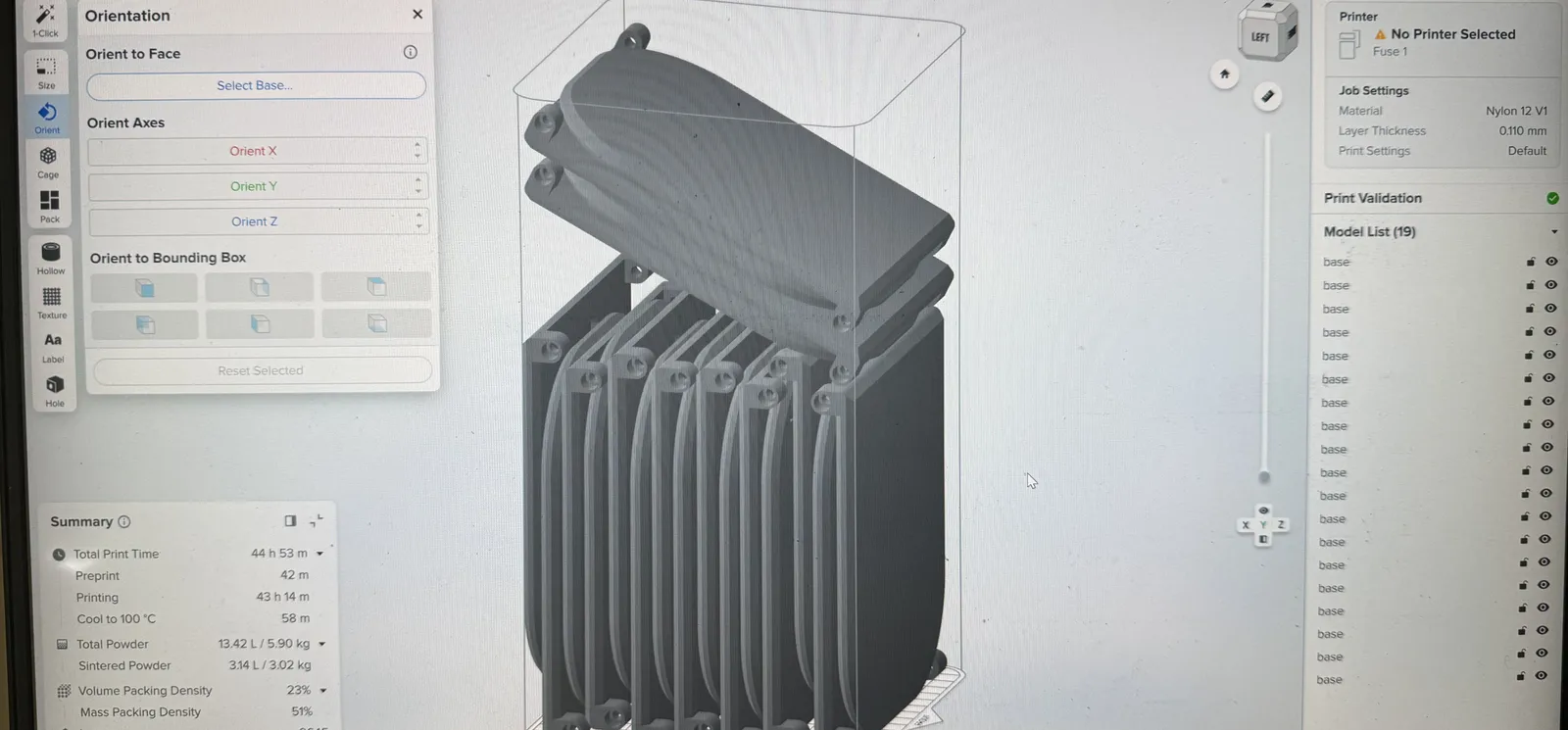

Fig. 0319 plates nested in PreForm: Fuse 1 profile, Nylon 12, estimated 44 h 53 m

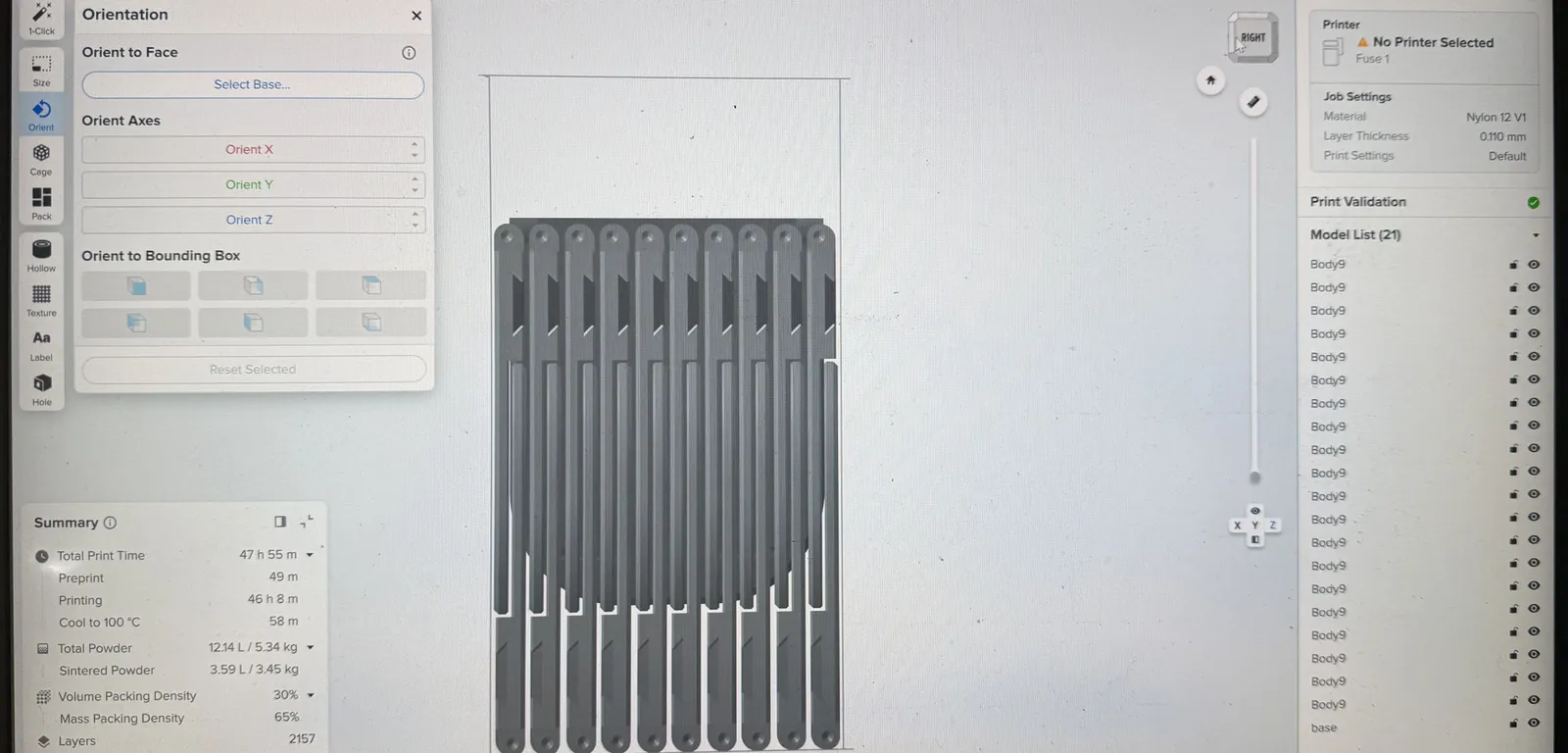

Fig. 04The second build in PreForm: 20 parts from the hinge file and one plate, estimated 47 h 55 m

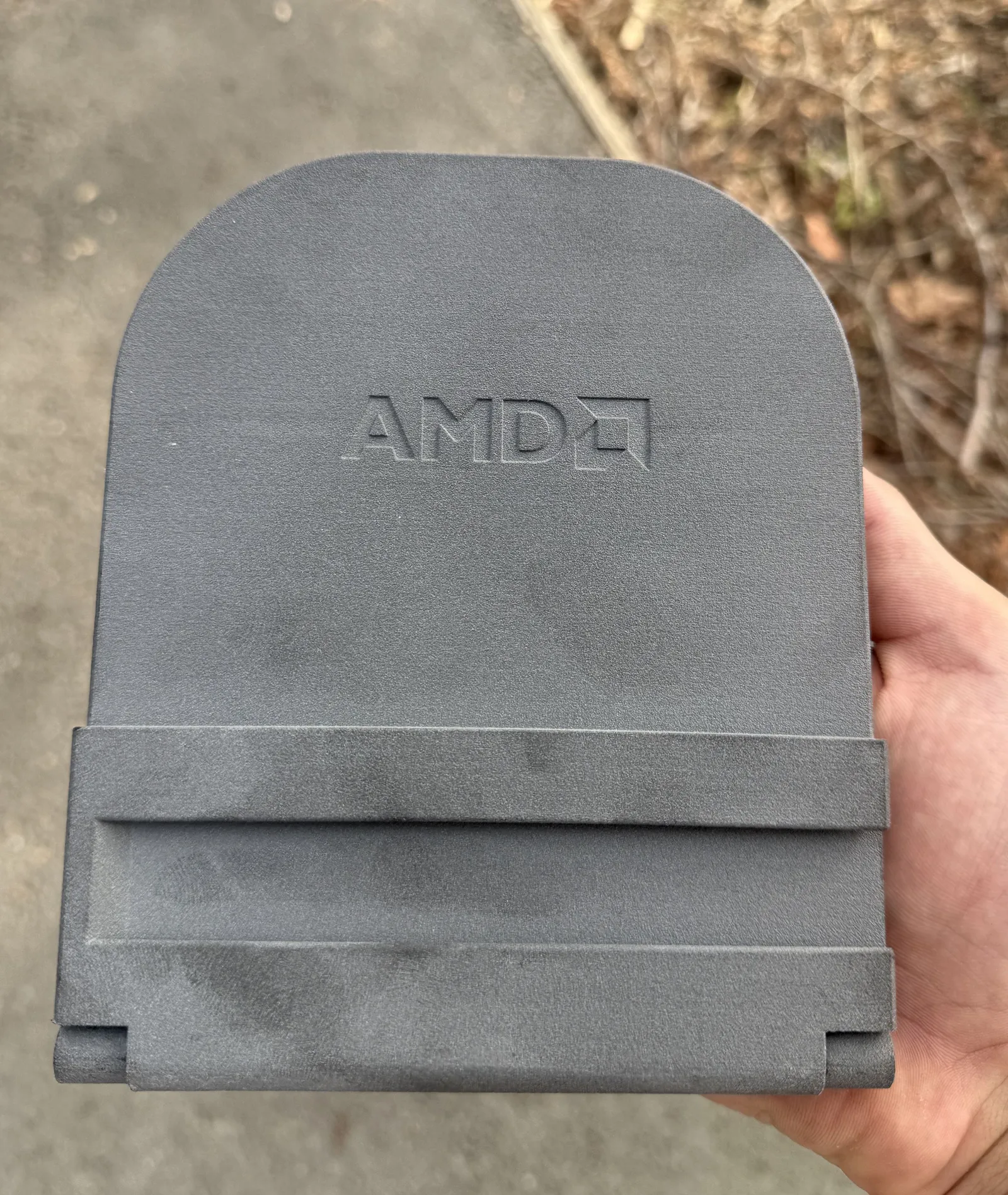

Fig. 05A front plate with the embossed AMD logo

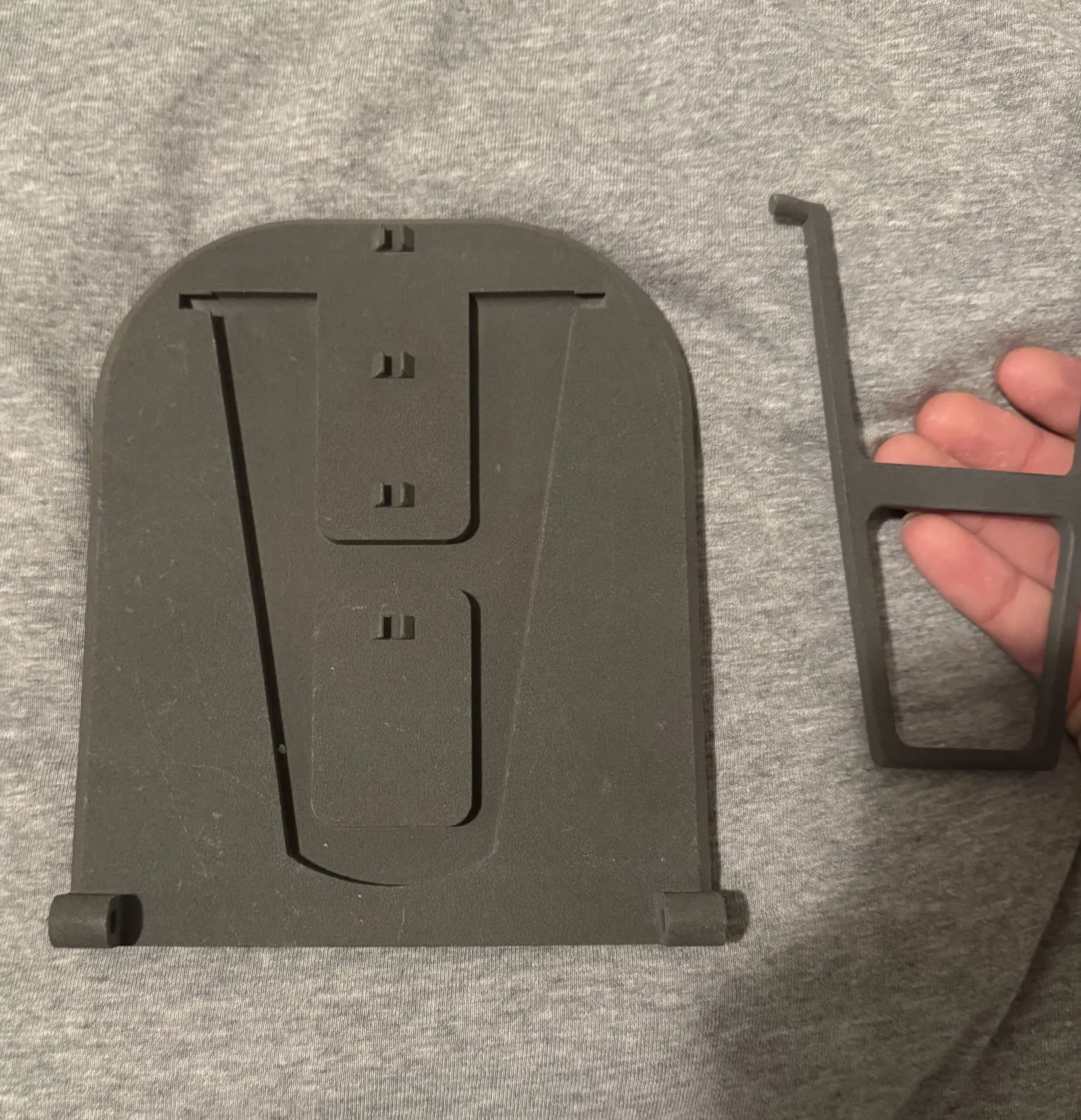

Fig. 06A back plate and a leg
